Views: 5698 Author: Site Editor Publish Time: 2026-05-02 Origin: Site
Core Purpose: Quickly check USB interface types, color meanings, version parameters and purchase points to avoid wrong purchases and improve usage efficiency

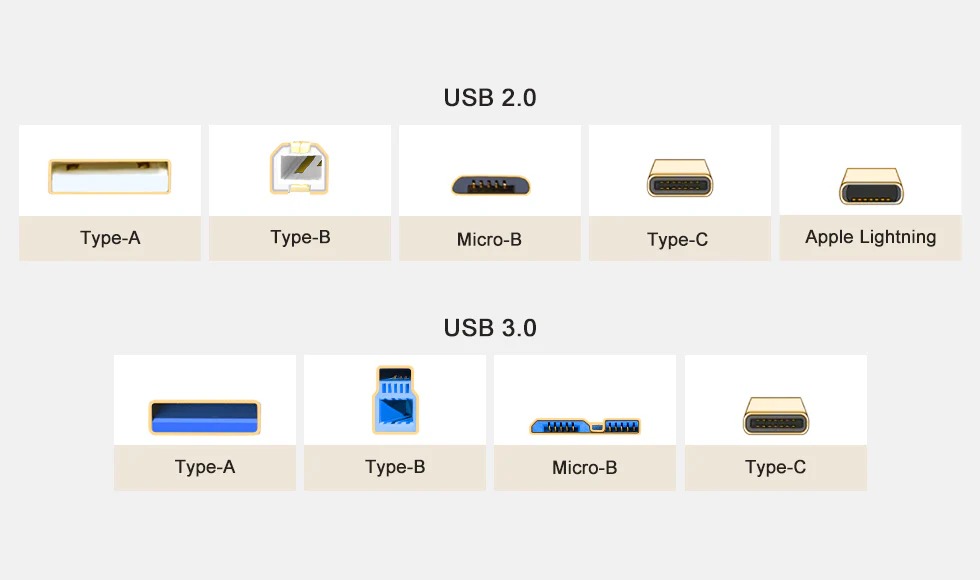

Interface Type | Core Features | Typical Devices | Supported Versions |
Type-A | Classic style, one-way insertion only, commonly used for host devices | Computers, chargers, USB Hubs, USB flash drives, external hard drives | USB 1.0/1.1, 2.0, 3.x |
Type-B | Square-shaped, dedicated to peripheral devices, paired with Type-A | Printers, scanners, some monitors | USB 1.0/1.1, 2.0, 3.x |
Type-C | Reversible insertion, high speed + high power, current mainstream | Mobile phones, tablets, laptops, SSDs, high-end chargers | USB 2.0, 3.x, USB4, USB4 2.0 |
Mini-B | Early small interface, basically obsolete | Old digital cameras, GPS devices, MP3 players | USB 2.0 |
Micro-B | Once the standard for Android devices, gradually replaced by Type-C | Old Android phones, power banks, entry-level external hard drives | USB 2.0; USB 3.0 version for high-speed external hard drives/SSDs |
Lightning | Apple proprietary, reversible insertion, gradually obsolete | Old iPhones, iPads, AirPods charging cases | Apple proprietary protocol, no universal USB version |
Black/White: USB 2.0 and below (maximum speed 480Mbps)
Blue: USB 3.0/3.1 Gen 1 (maximum speed 5Gbps)
Red/Cyan, etc.: USB 3.1 Gen 2/3.2/USB4 (high-speed versions, ≥10Gbps)
Note: Interfaces of different versions are backward compatible, and the speed is determined by the lowest specification end.
USB Version | Release Year | Maximum Speed | Typical Uses |
USB 1.0/1.1 | 1996/1998 | 1.5Mbps~12Mbps | Keyboards, mice, early printers |
USB 2.0 | 2000 | 480Mbps | Ordinary USB flash drives, webcams, low-end peripherals |
USB 3.0/3.1 Gen 1 | 2008/2013 | 5Gbps | Mainstream consumer grade, external hard drives, high-speed USB flash drives |
USB 3.1 Gen 2 | 2013 | 10Gbps | 4K videos, high-speed SSDs, VR devices |
USB 3.2 | 2017 | 20Gbps | Dual-lane high speed, high-end storage, video output |
USB4 | 2019 | 40Gbps | Thunderbolt 3 compatible, external graphics cards, professional storage |
USB4 2.0 | 2022 | 120Gbps/40Gbps (Asymmetric) | Multi-channel high speed, professional devices (niche applications) |
Comparison Item | USB Type-C | Lightning |
Standard Attribute | Open and universal standard | Apple proprietary standard |
Maximum Speed | 40Gbps (USB4) | Approx. 20Gbps (high-end models) |
Power Supply Capacity | Up to 240W | ≤30W~33W |
Compatibility | Universal across all platforms | Only for Apple devices |
Current Status | Global mainstream universal interface | Gradually replaced by Type-C |
Prioritize Type-C interfaces for the strongest versatility and compatibility with future devices
For external hard drives/SSDs, it is recommended to choose USB 3.1 Gen 2 and above to improve large-file transfer speed
For fast charging: The specifications of the interface, cable and charger must match; otherwise, full-speed charging cannot be achieved
For old devices, use adapters such as Type-C to A/B/Micro to ensure compatibility
