As home theaters, gaming systems, and professional AV setups move toward 4K at 120 Hz, 8K at 60 Hz, HDR, and immersive sound formats like Dolby Atmos, cabling becomes a hidden but critical factor. The HDMI standard has advanced quickly, but copper HDMI cables struggle once distances exceed a few meters at full HDMI 2.1 bandwidth (48 Gbps).
Most users wonder whether to pick a standard copper HDMI cable or upgrade to a fiber optic HDMI cable. While both cables transmit audio and video signals for TVs, monitors, and projectors, they differ drastically in transmission technology, maximum length, anti-interference performance, and use cases. This guide breaks down the full comparison between fiber optic HDMI and regular HDMI cables to help you make a cost-effective, future-proof choice.
To understand their differences, it is essential to start with their basic working principles and structural designs.
Regular HDMI Cables (Copper HDMI): Standard HDMI cables adopt traditional copper wire conductors to transmit electrical signals. As the mainstream option on the consumer market for decades, they feature simple structures, universal compatibility, and affordable pricing. All mainstream HDMI versions, including HDMI 2.0 and HDMI 2.1, have copper variants for short-distance daily connections. They work seamlessly with TVs, monitors, gaming consoles, laptops, and projectors for regular home and office use.
Fiber Optic HDMI Cables (AOC HDMI): Also known as Active Optical Cables, fiber optic HDMI cables replace copper cores with lightweight glass or plastic optical fibers. Instead of electrical signals, they transmit data through light pulses. Built with built-in electro-optical conversion chips, these cables convert electric signals to light at the transmitting end and convert them back to electric signals at the receiving end. This advanced design completely avoids the physical limitations of copper transmission, delivering more stable and powerful signal performance.
A fiber optic HDMI cable, or HDMI AOC (Active Optical Cable), integrates:
★ Optical fiber strands for high-speed video/audio transmission.
★ Copper wires for low-speed signaling and power (5 V), such as: eARC/ARC (Audio Return Channel) CEC (Consumer Electronics Control) EDID/HDCP handshakes+5 V power line
At each end, the HDMI plug contains tiny optical transceivers that perform electrical-to-optical conversion (TX) and optical-to-electrical conversion (RX).
Most HDMI AOCs are directional: one connector is labeled Source (TX) and must be plugged into the output device (Blu-ray player, console, PC, receiver), while the other is Display (RX) for the monitor or projector.
Fiber HDMI designs vary, but a common construction includes:
★ 4 multimode fiber cores (for high-speed TMDS or FRL video/audio data).
★ 7–9 copper wires for low-speed signaling and power.
★ Shielding for copper pairs (e.g., aluminum foil).
★ Optical TRX chips in the connectors: VCSEL lasers on the transmit side and photodiodes on the receive side.
Because the heavy data lanes move to optical fiber, the cable becomes thinner, lighter, and easier to run through walls and conduits than an equivalent copper HDMI cable.
The usefulness of fiber HDMI cables is best understood in the context of HDMI’s rapid evolution.
HDMI Versions and Key Capabilities
HDMI Version | Max Bandwidth | Typical Resolutions | Transmission Method | Key Features |
|---|---|---|---|---|
1.4 (2009) | 10.2 Gbps | 4K @ 30 Hz, 1080p @ 60 Hz | TMDS | ARC, 3D, Ethernet (HEC) |
2.0 / 2.0b (2013–15) | 18 Gbps | 4K @ 60 Hz 4:4:4 | TMDS | HDR10/HLG, 32 audio channels |
2.1 (2017) | 48 Gbps | 8K @ 60 Hz, 4K @ 120 Hz | FRL (Fixed Rate Link) | Dynamic HDR, VRR, ALLM, QFT, QMS, eARC |
Key point: HDMI 2.1 introduced FRL signaling, replacing TMDS at high rates. To carry uncompressed 8K video, cables must support 48 Gbps and maintain signal integrity across the length.
Fiber optic HDMI cables (Active Optical Cables) transmit signals as light, making them perfect for long-distance runs (up to 300 meters) without signal loss.
Regular HDMI cables use copper wires. They are best for short connections (under 15 meters) but degrade over long distances and are prone to electrical interference
Regular HDMI Cables (Copper HDMI): Traditional HDMI cables use pure copper wires to transmit electrical signals. As the most common and budget-friendly option on the market, they follow mature manufacturing standards and are compatible with almost all consumer electronic devices. However, electrical signal transmission has inherent physical limitations, making these cables vulnerable to external interference and signal attenuation over distance .
Fiber Optic HDMI Cables (AOC HDMI): Also known as active optical HDMI cables, they replace copper conductors with glass or plastic fiber cores to transmit data via light pulses. They adopt an electro-optical conversion structure, converting electrical signals to light signals at the transmitting end and restoring them to electrical signals at the receiving end. This optical transmission mechanism eliminates the core flaws of copper cables and delivers more stable high-bandwidth performance .

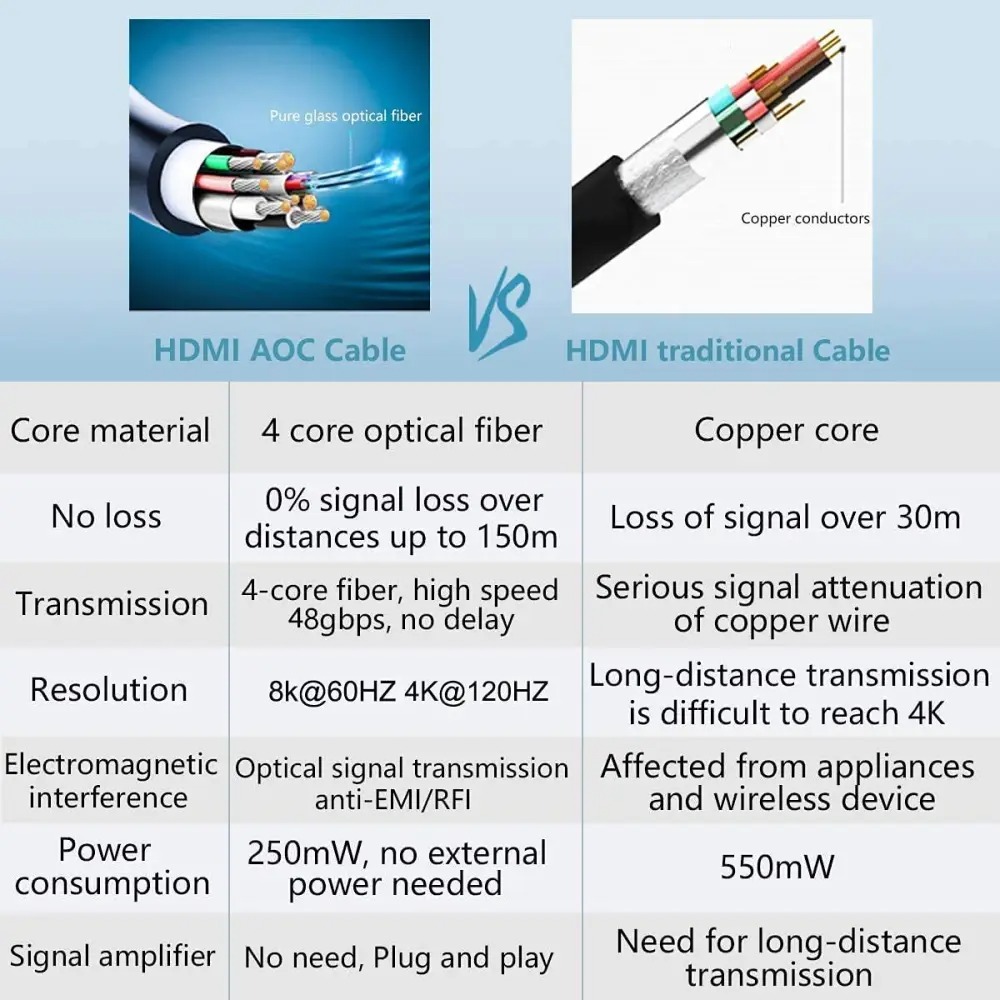

Cable Type | Bandwidth Support | Reliable Length (typical) | EMI Immunity | Thickness | Cost | Typical Use |
|---|---|---|---|---|---|---|
Passive copper HDMI | Up to 18 Gbps (HDMI 2.0); some premium ≤ 48 Gbps | ≤ 2–3 m (48 Gbps) | Limited | Thick | Low | Short connections (console → TV) |
Active copper HDMI | 18–48 Gbps | 3–5 m | Limited | Thick | Medium | Medium runs within a rack |
Fiber HDMI (AOC) | 18–48 Gbps | 10–50 m (some up to 100 m) | Excellent | Thin & light | Medium–High | Home theaters, conference rooms, projectors |
Extenders / repeaters | Varies | >100 m (using extra hardware) | Depends on tech | Complex | Higher overall | Stadiums, auditoriums |
Fiber HDMI AOCs (Active Optical Cables) provide uncompressed 48 Gbps bandwidth over long distances, zero signal degradation, and complete immunity to electromagnetic interference. They are highly flexible, lightweight, and thin, making them much easier to route through walls and ceilings compared to bulky copper cables.
Key advantages of using fiber HDMI AOCs include:
• Long-Distance Transmission: Unlike passive copper cables that degrade after 3-5 meters, AOCs can reliably span 10 to 100+ meters without losing image or audio quality.
• Ultra-High Bandwidth: They easily support modern high-resolution formats like 4K@120Hz and 8K@60Hz, along with advanced gaming and audio features like eARC, VRR, and HDR10+.
• EMI Immunity: Because signals travel as pulses of light rather than electrical currents, they are impervious to electromagnetic and radio frequency interference from nearby power lines.
• Easier Installation: Glass fibers are significantly thinner and lighter than thick copper wiring, allowing for clean, hidden setups in home theaters, commercial conference rooms, and equipment racks.
Fiber optic HDMI cables: Transmit signals internally via optical fiber, using light signals for transmission. They have extremely strong anti-interference capabilities, low attenuation, and are suitable for long-distance transmission.
Regular HDMI cables: Transmit signals via copper wires, using electrical transmission methods (coaxial,twisted pair, etc.), making them more susceptible to electromagnetic interference and crosstalk.
Fiber Optic HDMI Cables: Typically designed to stably support 4K@60Hz and even higher resolutions and HDR (depending on the specific model; confirm supported HDMI versions, bandwidth, and protocols). The longer the distance, the greater the advantage
Regular HDMI Cables: Commonly support HDMI 1.4,HDMI2.0, etc. Resolution is limited by cable specifications and length. 4K@60Hz may be limited over longer distances if the cable quality is insufficient.
Advantages: Zero long-distance signal loss, full EMI interference resistance, ultra-thin flexible body, full HDMI 2.1 high-bandwidth support, stable long-term fixed wiring performance, future-proof for 8K devices.
Disadvantages: Premium pricing, fragile fiber cores against rough operation, requires minor power supply from device ports.
Advantages: Budget-friendly price, universal device compatibility, sturdy and drop-resistant, plug-and-play with no extra power supply, perfect for short-distance daily connections, low maintenance cost.
Disadvantages: Severe signal loss over long distances, vulnerable to electromagnetic interference, bulky and inflexible, limited performance for 8K and high-refresh-rate gaming.
• Short (<3 m): High-quality passive copper HDMI works.
• Medium (3–5 m): Premium active copper can suffice for 18 Gbps; risky at 48 Gbps.
• Long (≥10 m): Fiber HDMI AOC is the safest option.
• Very long (>50 m): Consider HDMI over fiber extenders with external hardware.
Home theater projectors (10–30 m runs).
Conference rooms with ceiling-mounted displays.
Digital signage in malls or airports.
High-end gaming setups where 4K120 stability is essential.
Stage, broadcast, and production environments with high EMI.
Distance Requirements: Determine the distance you need for transmission. For distances from tens of centimeters to several meters, a standard HDMI cable is usually sufficient.
Resolution and Refresh Rate: Confirm your required resolution (4K, 8K) and HDR features, and verify the cable's bandwidth and HDMI version.
Environmental Interference and Cabling Path: If there is significant environmental interference or long wall-penetrating cabling is required, fiber optic cables offer greater advantages.
Quality and Certification: Choose products from reputable brands that support HDMI certification and offer warranties.
If you'd like, please tell me your specific needs (distance, resolution, budget, whether wall-penetrating cabling is required, etc.), and we can provide you with specific purchasing advice.
Symptom | Possible Cause | Fix |
|---|---|---|
No signal | Cable plugged backwards (Source/Display) | Reverse ends correctly "Source" is plugged into your PC |
Intermittent black screen | Bend radius exceeded / dirty connector | Re-route cable; clean connectors |
No eARC audio | Cable or device not eARC compatible | Verify eARC support on both ends |
Works at 4K60 but not 4K120 | Cable not rated for 48 Gbps | Replace with certified HDMI 2.1 AOC |
Signal drops after a few minutes | Power draw too high | Add USB power booster |
Choose Regular HDMI Cables If:
• Your connection distance is within 5 meters, such as laptop to monitor, game console to TV, and set-top box to display.
• You only need basic 4K video playback, office projection, and daily entertainment functions.
• You have a limited budget and prioritize cost performance and replaceability.
• The wiring environment allows loose cable placement without narrow bending constraints.
Choose Fiber Optic HDMI Cables If:
• You need long-distance wiring over 5 meters, including wall embedding, ceiling wiring, and conference room engineering installation.
• You are a hardcore gamer or home theater enthusiast pursuing 4K@120Hz gaming, 8K video viewing, and HDR cinema-level visuals.
• Your wiring area has dense power lines and strong electromagnetic interference.
• You need ultra-thin flexible cables for narrow-space hidden installation and neat cable management.
• You want a future-proof cable to match upcoming 8K high-spec devices.
Q1: Do fiber HDMI cables improve image quality?
A: No inherent image-quality improvement is expected when both links deliver the same valid digital signal. The decision is about certified capability, reach, installation, and error-free operation.
Q2: How is an active fiber HDMI cable powered?
A: Power design varies by exact cable and source. Some draw supported power from HDMI, some use HDMI Cable Power, and some require USB; verify direction, source capability, and the cable manual.
Q3: Can a fiber HDMI AOC support 4K120, VRR, and HDR?
A: Only if the exact source, display, ports, settings, cable model, length, and certification support the required data rate and features. Verify the official label and test the full chain.
Q4: How should a fiber HDMI AOC be installed?
A: Follow the exact pull-force, bend-radius, connector-protection, conduit, direction, temperature, and in-wall rating instructions; test before closing walls and provide a replacement path.
Q5: What is the maximum reliable fiber HDMI length?
A: There is no universal distance. Use the certified length of the exact model and validate the complete source, repeater or receiver, display, resolution, refresh, HDR, audio, and control features.
There is no one-size-fits-all best HDMI cable—only the most suitable one for your scenario. For 90% of ordinary household and office users, regular copper HDMI cables are sufficient enough, offering reliable short-distance performance and outstanding cost performance. For professional users, audiovisual enthusiasts, and users with long-distance wiring needs, fiber optic HDMI cables are a worthwhile upgrade.
Despite the higher price, fiber optic HDMI cables solve the core pain points of copper cables, including signal attenuation, interference, and inflexible installation. They provide stable high-bandwidth transmission and long-term reliability, making them a future-proof investment for high-quality AV setups in 2026 and beyond.
