When purchasing an HDMI cable, start by clarifying three key questions: what devices you are connecting, what video signal you will transmit, and the required cable length.
For regular end users, a suitable HDMI cable delivers stable video and audio. For resellers, wholesalers and brand buyers, additional factors need consideration, including product positioning, consistent specifications, branded packaging and restocking arrangements.
This guide covers the main HDMI cable categories, bandwidth, connector types and selection tips. It also explains how to communicate production and customization requirements with Flexi to build a clear procurement plan.
HDMI stands for High-Definition Multimedia Interface. An HDMI cable connects compatible devices and carries digital video and audio signals through a single cable.
Common use cases include PC-to-monitor connections, game consoles to TVs, media players to audio-visual equipment, projectors and commercial display systems.
When selecting an HDMI cable, verify the connector type, performance rating, length and installation conditions at the same time.
| Checkpoint | Questions to Confirm |
|---|---|
| Connectors | What connectors are fitted at each end? |
| Video Specs | What resolution and refresh rate do you need? |
| Color Requirements | Does the application require HDR, high bit depth or specific color formats? |
| Length & Installation | What is the actual cable run length? Will the cable be routed inside walls/conduits or connected to movable devices? |
| Procurement Needs | Do you require custom branding, bespoke packaging or multiple SKUs? |
HDMI cable performance classes define the maximum data throughput, measured in Gbps. The supported video formats also depend on connected hardware and system settings.
| Cable Name | Reference Bandwidth | Primary Use Cases |
|---|---|---|
| Standard HDMI Cable | Legacy grade | Older HD devices |
| High Speed HDMI Cable | Up to 10.2 Gbps | 1080p and supported 4K formats within limits |
| Premium High Speed HDMI Cable | Up to 18 Gbps | Common 4K@60 applications |
| Ultra High Speed HDMI Cable | Up to 48 Gbps | High-bandwidth AV and gaming on compatible hardware |
| Ultra96 HDMI Cable | Up to 96 Gbps | HDMI 2.2 applications requiring extreme bandwidth |
Premium High Speed is a certified tier for High Speed cables. Ultra High Speed and Ultra96 both carry formal certification requirements.
For standard monitors and regular AV systems, confirm the actual output signal first before choosing a cable. Do not rely solely on words such as “HD” or “4K” printed on packaging to judge capability.
Applications like 4K@120Hz start with certified Ultra High Speed HDMI cables. Note that the game console, graphics card, display panel and physical port must all support the target video mode.
Ultra96 supports up to 96 Gbps. HDMI’s official specification categorizes it for full HDMI 2.2 use cases, including uncompressed full-color 4K@240Hz and 8K@60Hz under defined conditions.
This standard does not mean all suppliers have such products readily available. Confirm model certification and lead time separately for bulk orders.
HDMI version refers to the interface specification, while cable grade describes the cable’s performance classification.
You may see market listings named “HDMI 2.0 cable” or “HDMI 2.1 cable”. For formal procurement, always confirm the official cable name, target video format and certification documents.
Example of a clear requirement (better than “buy a high-end HDMI cable”):
Standard HDMI male-to-male, 2m length, target device supports 4K@120Hz; provide performance and certification documents for this exact model and length.
For brand customers, descriptions on product titles, packaging, user manuals and technical datasheets must be consistent to avoid confusion at the retail end.
HDMI connector size and cable bandwidth are independent attributes.
| Common Name | Connector Type | Typical Applications |
|---|---|---|
| Standard HDMI | Type A | TVs, monitors, game consoles, AV equipment |
| Mini HDMI | Type C | Cameras and selected compact devices |
| Micro HDMI | Type D | Action cameras and other portable gear |
All three variants use a 19-pin pinout and differ only in physical form factor. Always double-check the port on your device before ordering.

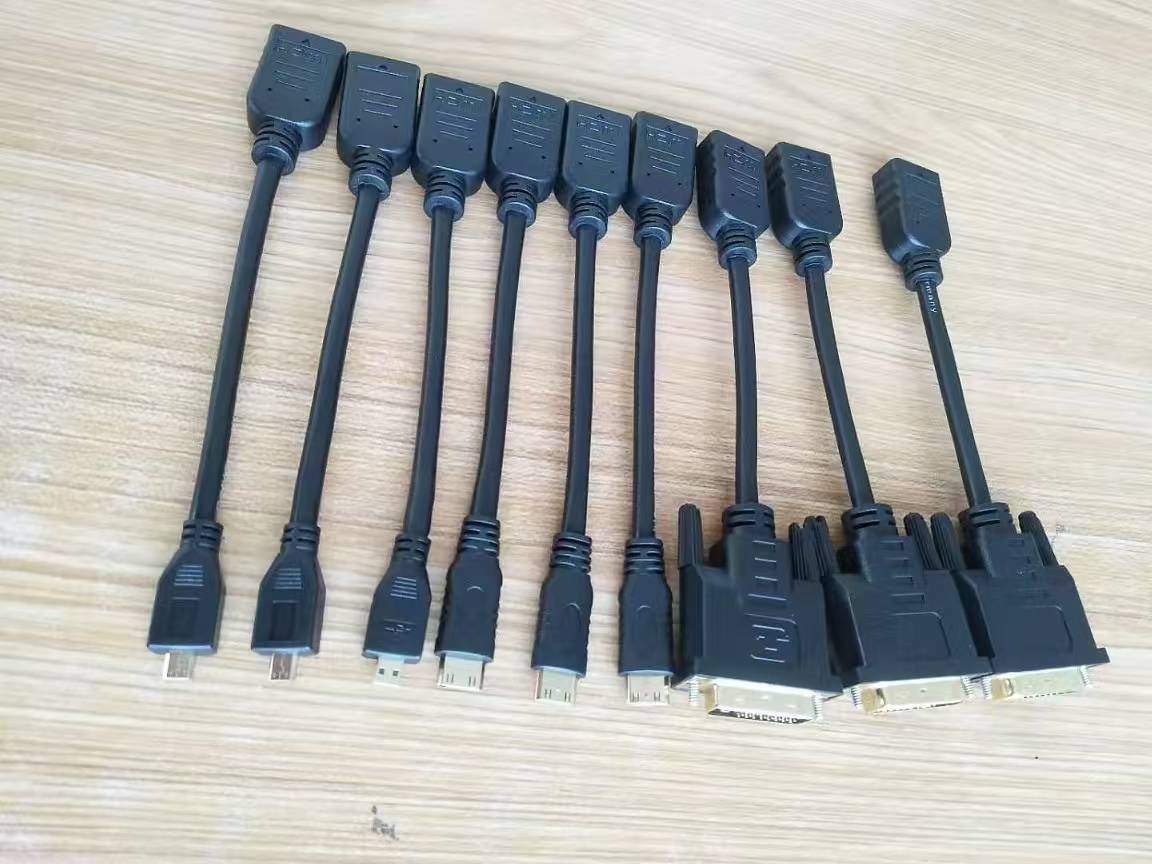

Flexi’s HDMI product page lists adapters including Micro HDMI to HDMI and 90-degree Mini HDMI to HDMI, which are good starting points for cross-device connections. Verify plug orientation and clearance for each specific model.
The same resolution does not equal the same bandwidth requirement.
When comparing cables, check these parameters together:
Resolution, e.g. 3840×2160
Refresh rate, e.g. 60Hz or 120Hz
Color bit depth
Color space such as RGB or 4:4:4
HDR support
Whether signal compression is applied
Resellers are advised to compile these parameters into a unified specification sheet, rather than using vague terms like “4K cable” or “8K cable” across sales channels.
For bulk procurement, test sample units with representative hardware and record the port settings and test results.
There is no universal reliable length limit for HDMI cables that applies to all signal formats and products. Real-world performance depends on cable construction, connected devices, signal requirements and routing paths.
Eaton’s selection guide also treats usable transmission distance as a combined result of multiple factors and covers active solutions for long runs.
For desktop setups and short connections between equipment in TV cabinets, passive copper cables are usually the first option.
Validate performance for the exact ordered length. Do not extrapolate test results from short samples to longer variants.
For projectors, conference rooms and commercial display projects, evaluate active copper or fiber HDMI based on the required distance.
Key confirmation points before ordering:
Whether the signal has a direction lock
If external power supply is required
What video formats the specified length supports
Compatibili
ty with audio return and control functions required for the project
Minimum bend radius and installation constraints
Flexi’s catalog includes 4K and 8K fiber HDMI cables. Confirm performance per model for project design.
ARC allows compatible TVs to send audio back to soundbars or AV receivers over HDMI. eARC delivers higher audio bandwidth and supports lossless high-bitrate formats including Dolby TrueHD and DTS-HD Master Audio.
Final playback quality also relies on the audio source, television, sound hardware and system configuration.
Use ports marked ARC or eARC for connection. For new eARC installations, certified Ultra High Speed HDMI cables are recommended. For active and fiber optic cables, verify eARC functionality by model.
Certification must match the exact product model and length you purchase.
Ultra High Speed and Ultra96 products must pass corresponding certification tests and carry certification labels on packaging or sales units. Official validation records include brand, model and length information.
Recommended bulk procurement workflow:
Confirm the official cable class name
Check certification labels and validation reports
Cross-reference brand, model and length
Test with your target device combinations
Retain approved samples and specification documents
Other compliance certificates from manufacturers must be checked for product scope and target markets; they cannot replace performance proof for a specific HDMI model.
Flexi provides HDMI cables and customization support for cable buyers. Its product portfolio on the official site covers 4K HDMI, 8K HDMI, fiber HDMI, Mini HDMI, Micro HDMI and related adapters.
Flexi’s website introduces its full production chain from raw materials to finished goods and offers build-to-print and custom cable services. This supports both off-the-shelf selection and custom project discussions.
Shape your product proposal around sales or usage scenarios:
Standard display cables for computer accessory stores
High-bandwidth cables for gaming consumers
Long-distance cables for engineering clients
Branded packaging and marking projects for OEM customers
Clarify these needs upfront to facilitate specification review, sampling and quotation.
Customers with drawings can submit dimensions, construction and marking requirements. Those without complete drawings may share device photos, installation notes or reference samples.
Every HDMI solution needs signal performance assessment. If appearance or length is modified, reconfirm performance and certification arrangements.
Customization is not limited to logo printing. For resellers and brand owners, cable construction, specs, markings and packaging should align with market positioning.
The list below serves as a discussion checklist with Flexi. Feasibility is subject to model evaluation.
You may submit requirements for:
SKU breakdown by length and order quantity
Termination types at both ends
Straight or angled plug designs
Physical clea
rance around connectors
Male/female combinations and signal direction
For wall-mounted equipment, check plug protrusion and routing direction alongside cable length.
Specify jacket color, outer diameter, flexibility, braided sleeve and operating environment.
These cosmetic and mechanical requirements must be reviewed together with electrical performance. Slimmer cables or alternative materials cannot be selected independently of target bandwidth and length.
Flexi offers logo and packaging services, including custom boxes based on customer artwork and packaging design assistance.
Brand customers should prepare the following:
| Item | Information to Provide |
|---|---|
| Branding | Logo source files, brand name |
| Product ID | Model number, length, color |
| Packaging Content | Confirmed performance specs and user instructions |
| Retail Specs | Barcodes, language versions, hang tab or display requirements |
| Shipment Rules | Carton quantity and outer carton marking |
Certification marks and performance statements on packaging must match the actual product and licensing scope.
Follow this recommended process; exact milestones and timelines are agreed mutually.
Submit your requirementsState target market, sales channel, connected devices, video formats, lengths, quantities and packaging rules.
Confirm solution and quotationFinalize cable construction, available materials, certification obligations, sampling plan, MOQ and lead time.
Test and approve samplesInspect connector fit, handling, target signal stability, markings and packaging.
Issue production confirmation documentsArchive approved samples, drawings, spec sheets and packaging files as the mass production standard.
Carry out agreed acceptance inspectionCheck against the agreed checklist and record the model and revision for future repeat orders.
Prepare the following information before sending an inquiry:
| Item | Example |
|---|---|
| Application | Retail, device bundling, engineering installation |
| Connector Type | HDMI male to male |
| Video Spec | 4K@60Hz with color requirements attached |
| Lengths | Quote for 1m, 2m, 3m separately |
| Quantity | Order volume per SKU |
| Appearance | Color, cable jacket and connector finish |
| Branding | Logo and print position |
| Packaging | Box style, barcode, language |
| Certification | Required certificates for target model |
| Timeline | Sample and bulk delivery schedule |
Looking to launch your own brand or expand your HDMI lineup? Visit https://www.czflexi.com/hdmi-cable.html and discuss specs, samples and packaging via https://www.czflexi.com/customization.html.
No. They differ in connector type, performance grade, length, internal construction and certification. Select based on intended use.
Not necessarily. Verify refresh rate, bit depth, color format and compression rules, plus port support on your hardware.
It fixes bandwidth bottlenecks caused by the cable, but it cannot enable display modes that your devices do not natively support.
Check source selection and physical connections first. Test with a known-good short direct cable to rule out adapters, switchers and other intermediate gear.
Flexi provides logo and custom packaging services via its official site. Submit your brand assets and packaging requirements; final design, MOQ and production schedules are confirmed per project.
Minimum order quantity and lead time vary by model, materials, construction, packaging and order volume. A formal quotation is required.
Sample confirmation validates connector fit, signal performance, appearance and packaging, and establishes a clear acceptance standard for mass production and repeat orders.
