Custom cable manufacturer——Flexi considers USB data cables to be the mainstream choice currently. They boast wide compatibility and high usage rates, offering the advantages of convenience, speed, and stability, while supporting various types of computers. The drawbacks are that some data cables with IC chips are relatively expensive, and some only support charging, lacking the ability to transmit data or perform firmware flashing.
Data cables act as the bridge for signal and power transmission between electronic devices. Below are core common‑sense points frequently consulted by buyers, together with key notes for custom‑made cable projects.
Custom cable manufacturers——Flexi notes that the USB interface is a widely adopted external bus standard in the computing field, primarily used for file transfer management, application connectivity, and communication with peripheral devices. This naturally surpasses the utility of indispensable data cables. As the use of data cables has become increasingly prevalent, many users have observed that these cables heat up during charging or file transfers. Simply put, a data cable consists of copper wires encased in plastic. When connected to a computer or charging device, the cable becomes energized. During data transmission or charging, the copper wires generate heat. The longer the duration and the greater the data throughput, the more heat is produced. Once the temperature reaches a certain level, heat dissipates through the outer plastic layer. If the heat is not excessive, this is considered a normal phenomenon.
Data‑only cables: Focus on signal transmission, for data sync, file transfer. Representative types: USB2.0, USB3.2, Type‑C data‑only cords. Power‑carrying capacity is limited.
Charging & data combo cables: Support both power delivery and data communication. Widely used for phones, laptops, portable gadgets.
Video transmission cables: Transmit audio‑video signals, such as HDMI, DP, Mini‑DP. Bandwidth determines resolution and refresh rate output.
Industrial custom cables: For equipment, medical devices, smart hardware, with special requirements for bending resistance, anti‑interference, high/low‑temperature tolerance.
Bandwidth: Decides data transfer speed and video resolution. Higher bandwidth enables faster transmission and clearer display.
Current & voltage rating: Determine maximum charging power. Mismatched specs may trigger heating, slow charging or device damage.
Conductor material: Pure copper conductors deliver stable performance; copper‑clad aluminum lowers cost yet has poorer conductivity, not fit for high‑power or long‑distance use.
Shielding: Foil shielding / braided shielding suppress electromagnetic interference, critical for long‑length cables and industrial scenarios.

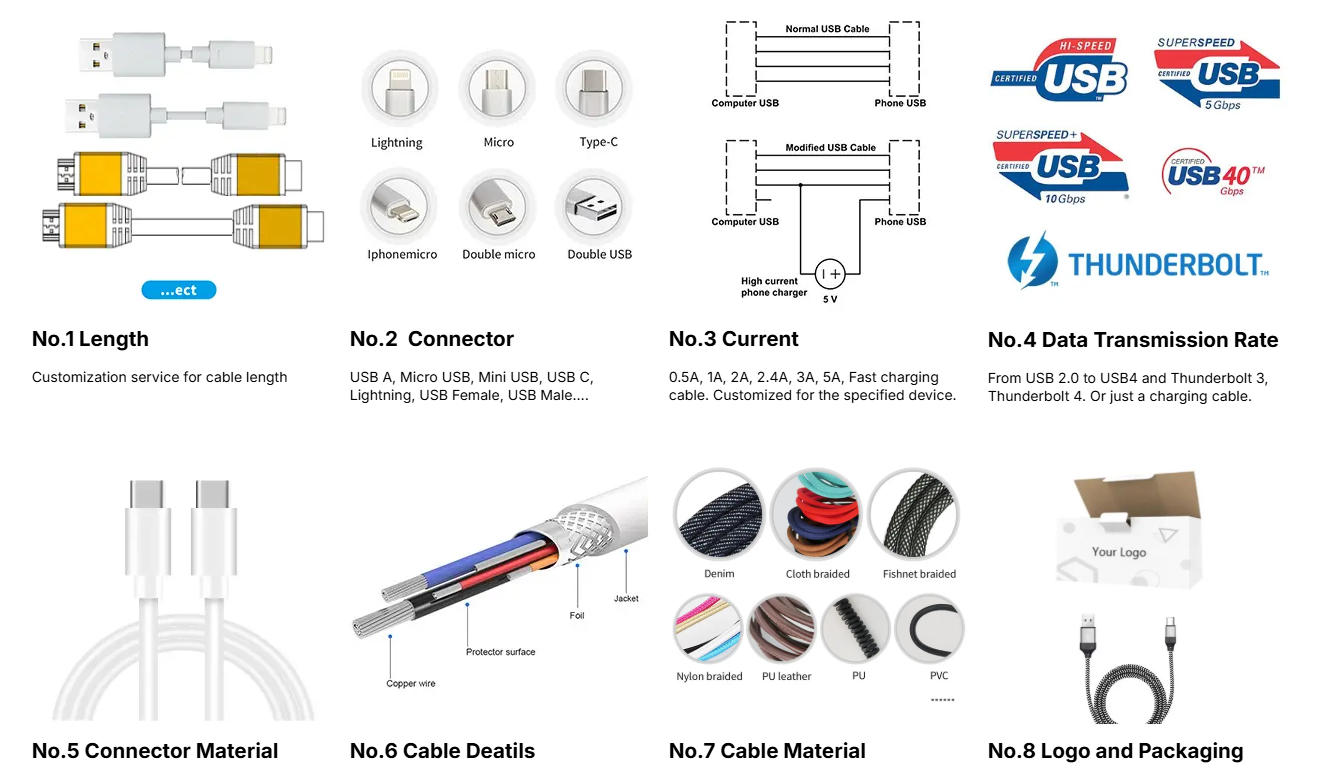

Off‑the‑shelf standard cables cannot satisfy all project demands. A professional custom cable manufacturer can support:
Custom length, wire gauge, connector types (Type‑C, USB‑A, HDMI, DP, special male‑female adapters)
Custom outer jacket material: PVC, TPE, PUR for wear‑resistant, oil‑proof or flexible needs
Custom wire internal structure: multi‑core, shielded, high‑temperature resistant
OEM & ODM service: custom logo, packaging, color, special‑use specifications for consumer electronics, business gifts, industrial equipment.
I believe that the wires inside a charging cable directly affect charging speed. A typical charging cable contains four wires, dedicated to power delivery and data transmission, respectively. The thicker the wires, the greater the current they can carry; therefore, thicker cables generally enable faster charging. To avoid restricting movement while charging, many people prefer longer cables, especially when charging in bed, as greater length seems more convenient. However, charging speed is also influenced by cable length. Since the conductors themselves have electrical resistance, theoretically, shorter cables of the same quality and thickness incur less energy loss and thus allow for faster charging.
Item | Description |
|---|---|
Internal structure of charging cable | A typical charging cable has 4 wires, responsible for power delivery and data transmission respectively |
Effect of wire thickness | Thicker wires can carry higher current. Generally, thicker cables deliver faster charging speed |
Advantages of long cables | Offer greater freedom of movement; convenient for scenarios such as charging in bed |
Drawbacks of long cables | Conductors have inherent electrical resistance. For cables with identical quality and thickness, longer length brings higher energy loss and slower charging |
Key conclusion | Under the same quality condition, short and thick charging cables achieve better charging performance |
I believe that USB connectors mainly consist of two parts: the metal housing and the pins. USB pins undergo various surface treatments, such as gold plating and silver plating. The advantage of gold plating is its low impedance and low power consumption; this also applies to the smaller connector on the other end. The quality of the connector, the tightness of the socket, and the coating on the interface all contribute to electrical resistance, thereby affecting the charging speed of mobile phones.
Item | Description |
|---|---|
Main components of USB connector | Metal housing and pins |
Common surface‑treatments for USB pins | Gold plating, silver plating |
Benefit of gold‑plated pins | Low impedance and low power consumption (also valid for the smaller mating connector) |
Factors generating electrical resistance | Connector quality, socket fitting tightness, interface surface coating |
Final impact | These resistance‑related factors will affect the mobile phone charging speed |
I also think that the data cable materials on the current market are TPE, PVC, nylon braided, leather wrapped, cloth wrapped, metal braided, etc. PVC and TPE are common plastics, and the data cable of TPE cover is much better than PVC in terms of feel and flexibility. At present, data cables are generally TPE and PVC plus a layer of nylon. This will make the cable look better and also make the cable more durable.
Item | Description |
|---|---|
Main available outer‑jacket materials | TPE, PVC, nylon braided, leather wrapped, cloth wrapped, metal braided, etc. |
PVC & TPE basic property | Both are common plastic materials |
Performance comparison: TPE vs PVC | TPE jacket outperforms PVC in hand feel and flexibility |
Popular composite structure | TPE / PVC base with an extra nylon outer layer |
Benefits of nylon composite layer | Improves visual appearance and enhances cable durability |
Finally, I also believe that the connector materials for data cables include plastic, aluminum alloy, and zinc alloy. Data cables with plastic connectors are relatively inexpensive. Alloy connectors are the mainstream choice. Among these, zinc alloy connectors represent the high-end segment. Compared to aluminum alloy, zinc alloy is harder, smoother, more textured, and more corrosion-resistant.
Item | Description |
|---|---|
Main connector materials | Plastic, aluminum alloy, zinc alloy |
Plastic connector feature | Relatively low‑cost |
Mainstream market option | Alloy connectors |
High‑end solution | Zinc alloy connectors |
Zinc alloy vs aluminum alloy | Zinc alloy is harder, smoother, better textured and more corrosion‑resistant |
Q1: Does longer cable equal slower speed? A: Yes. Signal attenuation rises with length. For high‑speed data / 4K‑8K video transmission, length must match the standard specification, otherwise signal loss will occur.
Q2: Can one cable realize fast charging and high‑speed data at the same time? A: Only if internal wiring, conductors and connectors meet corresponding specs. Not all combo cables support both high power and high‑speed data.
Q3: What information should I provide to the custom cable manufacturer? A: Expected length, connector combination, function (charging / data / video), rated current‑voltage, shielding requirement, jacket material, quantity and special environment conditions. Clear requirements help avoid sample revision waste.
If you have special requirements on wire structure, performance test, compliance certification (CE, FCC, RoHS), a reliable custom cable manufacturer can provide one‑stop solutions from prototype sampling to mass production.
