Views: 5468 Author: Site Editor Publish Time: 2026-05-04 Origin: Site
USB (Universal Serial Bus) is currently the most widely used standard for power supply and data transfer globally, present almost everywhere from computers and mobile phones to various peripheral devices. With technological iterations, interface forms and transmission protocols have continuously evolved. This article systematically sorts out the mainstream USB interface types, differences between generations of versions, and the core differences between Type-C and Lightning, helping you quickly understand the uses and performance of different interfaces.

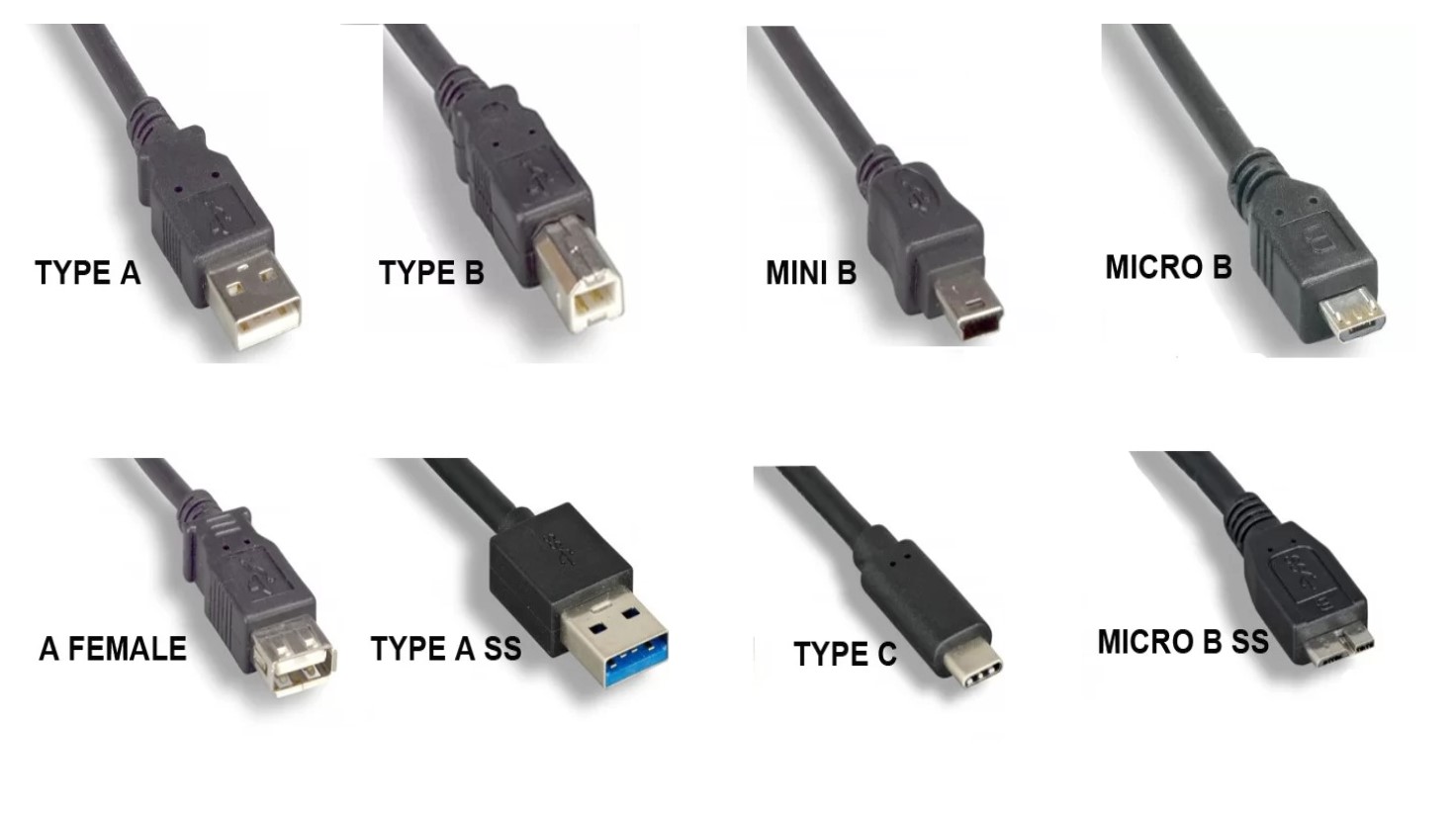

USB interfaces are divided into various types according to their physical forms, adapting to different device sizes and functional requirements. The most common types are as follows:
The most classic and widely used interface, mostly used for host devices, only supporting one-way insertion.
Typical devices: Computers, chargers, USB Hubs, external hard drives, USB flash drives
Supported versions: USB 1.0/1.1, USB 2.0, USB 3.x
A square-shaped interface, mainly used for peripheral devices, paired with Type-A for use.
Typical devices: Printers, scanners, some monitors
Supported versions: USB 1.0/1.1, USB 2.0, USB 3.x
A new-generation universal interface with reversible insertion, integrating high-speed data transfer, high-power supply, and video output. It is the current mainstream trend.
Typical devices: Mobile phones, tablets, laptops, solid-state drives (SSDs), high-end chargers
Supported versions: USB 2.0, USB 3.x, USB4, USB4 2.0
An early miniaturized interface, larger in size than Micro-B, and now basically obsolete.
Typical devices: Old digital cameras, GPS devices, MP3 players
Supported versions: USB 2.0
Once the standard for Android phones, thinner and lighter than Mini-B, and currently being gradually replaced by Type-C.
Typical devices: Android phones, power banks, entry-level external hard drives
Supported versions: USB 2.0; USB 3.0 Micro-B (used for high-speed external hard drives/SSDs)
An Apple-exclusive interface launched in 2012, supporting reversible insertion. It is only used for devices such as iPhones and iPads, and new models have fully switched to Type-C.
Typical devices: Old iPhones, iPads, AirPods charging cases
Features: Proprietary protocol, requires MFi certification, lower transfer and power limits than Type-C
The color of the plastic inside the interface is often used to distinguish protocol versions (may vary by manufacturer, for reference only):
Black/White: Mostly USB 2.0 and below (480Mbps)
Blue: Mostly USB 3.0/3.1 Gen 1 (5Gbps)
Red/Cyan, etc.: Often represent high-speed versions of USB 3.1 Gen 2/3.2/USB4
Note: Interfaces of different versions are backward compatible, but the speed and performance are determined by the lowest specification end.
Since its launch in 1996, USB has continuously upgraded, with significant improvements in transfer speed and power supply capacity:
Standard | Release Year | Maximum Speed | Positioning and Typical Scenarios |
|---|---|---|---|
USB 1.0/1.1 | 1996/1998 | 1.5Mbps~12Mbps | Keyboards, mice, early printers |
USB 2.0 | 2000 | 480Mbps | Ordinary USB flash drives, webcams, low-end peripherals |
USB 3.0/3.1 Gen 1 | 2008/2013 | 5Gbps | Mainstream consumer grade, external hard drives, high-speed USB flash drives |
USB 3.1 Gen 2 | 2013 | 10Gbps | 4K videos, high-speed SSDs, VR devices |
USB 3.2 | 2017 | 20Gbps | Dual-lane high speed, high-end storage, video output |
USB4 | 2019 | 40Gbps | Thunderbolt 3 compatible, external graphics cards, professional storage |
USB4 2.0 | 2022 | 120Gbps/40Gbps Asymmetric | Multi-channel high speed, professional devices |
Both support reversible insertion, but there are significant differences in standard openness, speed, power, and compatibility:
Comparison Item | USB Type-C | Lightning |
|---|---|---|
Standard Attribute | Open and universal standard | Apple proprietary standard |
Transfer Speed | Up to 40Gbps (USB4) | Up to approximately 20Gbps (high-end models) |
Power Supply Capacity | Up to 240W | Usually ≤30W~33W |
Functions | Data + Power Supply + Video + Audio | Data + Power Supply + Audio; video requires an adapter |
Compatibility | Universal across all platforms | Only for Apple devices |
Current Status | Global mainstream universal interface | Gradually being replaced by Type-C |
Simply put: Type-C is an all-round universal interface, while Lightning is an old Apple-exclusive interface.
Prioritize devices and cables with Type-C interfaces, as they have the strongest versatility and are a one-stop solution.
For external hard drives/SSDs, it is recommended to use USB 3.1 Gen 2 and above for faster large-file transfers.
For fast charging, the specifications of the interface, cable, and charger must match; otherwise, full-speed charging cannot be achieved.
For connecting old devices, adapters such as Type-C to A/B/Micro-C can be used to ensure compatibility.
From the early single interface to today's Type-C dominance, USB's development is both a technological progress and an inevitable trend of industry unification. Understanding the differences between interface types and versions can not only help you avoid buying the wrong cables but also allow your devices to perform at their best. In the future, USB4 and higher-spec Type-C will continue to be the core connection standard for computers, mobile phones, vehicles, and smart homes.
