VGA (Video Graphics Array) cables have been a staple in the world of computer displays for decades. Despite the rise of more modern display interfaces like HDMI and DisplayPort, VGA remains relevant in many applications, especially in older systems and some specific industrial setups. As a VGA cable supplier, one of the most common questions we receive from customers is, "How long can a VGA cable be without signal degradation?" In this blog post, we'll delve into the factors that influence the maximum length of a VGA cable and provide some practical guidelines.
Before we discuss the maximum cable length, it's important to understand how VGA signals are transmitted. VGA uses an analog signal to carry video information from the source (such as a computer's graphics card) to the display (such as a monitor). The analog nature of the VGA signal makes it more susceptible to interference and degradation over longer distances compared to digital signals.
The VGA cable consists of multiple conductors that carry different components of the video signal, including red, green, and blue color channels, as well as horizontal and vertical synchronization signals. These signals need to be accurately transmitted to ensure a clear and stable image on the display.

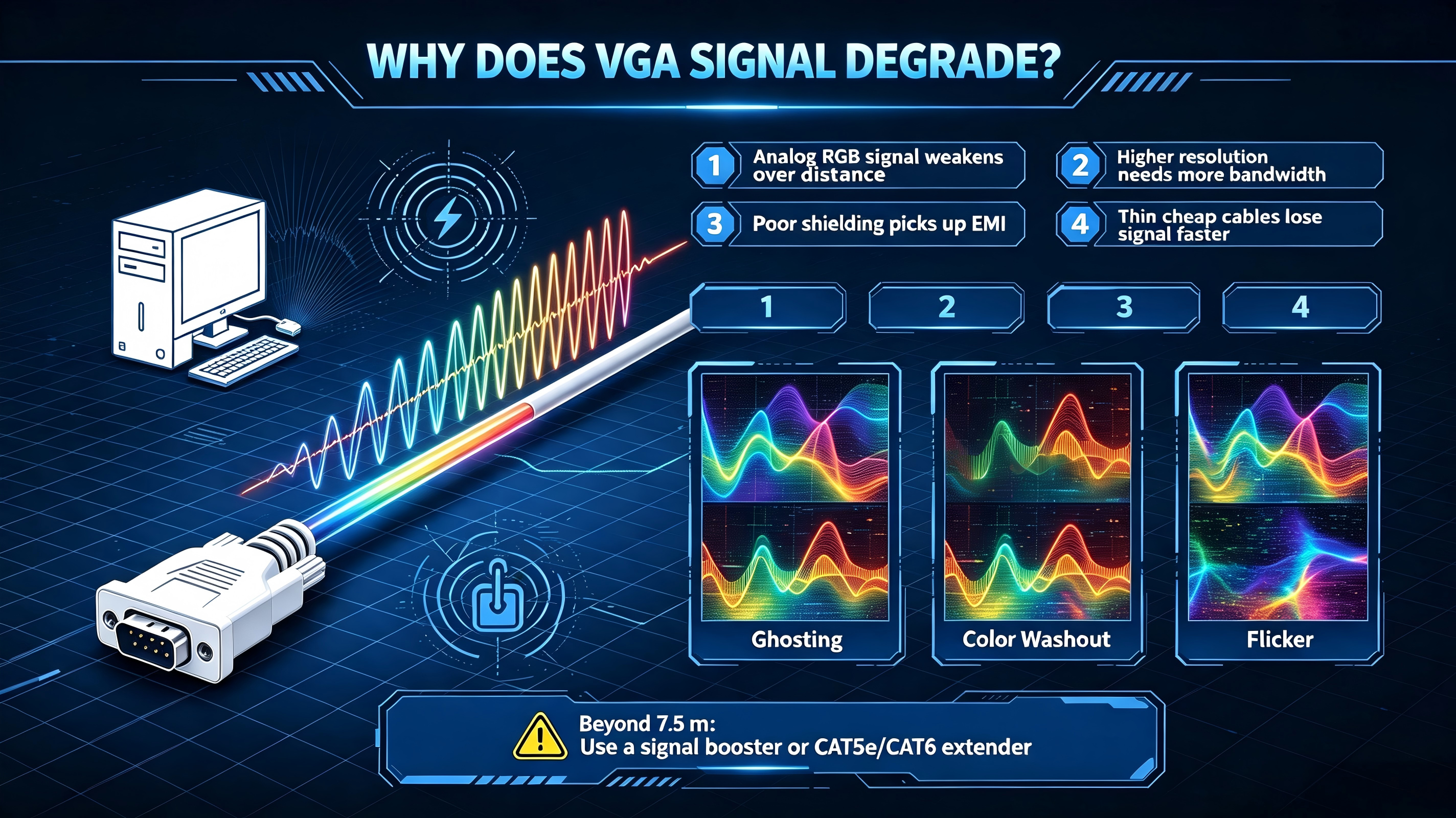

VGA carries analog RGB video signals, so attenuation, ghosting, color washout, flicker and EMI interference worsen with cable length, resolution and cable quality.
All figures below apply to passive copper VGA cables (no built-in signal amplifiers).
Resolution |
Max clean length (no obvious degradation) |
Common symptoms beyond limit |
|---|---|---|
640×480 / 800×600 (VGA/SVGA) |
Up to 30 m (100 ft) |
Mild color fading; minimal ghosting |
1024×768 / 1280×1024 (XGA/SXGA) |
15–20 m (50–65 ft) |
Visible ghosting, blurred text |
1080p / 1920×1200 (Full HD) |
≤7.5 m (25 ft) |
Severe ghosting, color distortion, unstable sync |
⚠️ Critical Practical Rule: Cheap thin, unshielded VGA cables will degrade much faster. Many low-cost cables start showing artifacts beyond only 3–5 m even at 1080p.
Several factors can affect the maximum length of a VGA cable without significant signal degradation:
The quality of the VGA cable plays a crucial role in determining how far the signal can travel. Higher-quality cables typically have better shielding, thicker conductors, and lower resistance, which helps to reduce signal loss and interference. For example, our Nickel Plated VGA Cable is designed with high-quality materials and advanced shielding techniques to provide reliable signal transmission over longer distances.
The frequency of the VGA signal also affects the maximum cable length. Higher-resolution displays require higher signal frequencies to transmit the additional information. As the signal frequency increases, the signal attenuation (loss) also increases, which limits the maximum cable length. For example, a VGA cable that can support a resolution of 640x480 pixels may be able to transmit the signal over a longer distance compared to a cable used for a higher-resolution display of 1920x1080 pixels.
The environment in which the VGA cable is installed can also have an impact on the signal quality. Electrical interference from nearby power cables, motors, or other electronic devices can cause noise and distortion in the VGA signal. To minimize the effects of environmental interference, it's important to use shielded VGA cables and keep them away from sources of electrical noise.
The quality of the connectors at both ends of the VGA cable is also important. Poorly made connectors can cause signal loss, intermittent connections, and other issues. Our VGA cables are equipped with high-quality connectors that ensure a secure and reliable connection between the source and the display.
Cable Construction
Premium: 3+6 mini-coaxial, double foil + braided shield, gold-plated connectors, ferrite beads → longest usable distance
Budget: Thin unshielded ribbon-style wiring → heavy signal loss, avoid runs over 3 m
Electromagnetic Interference (EMI)
If routed alongside power cables, motors or lighting, shorten your maximum safe length by 30%–50%.
Refresh Rate
Higher refresh rates (75Hz / 85Hz) demand wider bandwidth and reduce reliable maximum length.
When you exceed the limits above, a plain passive VGA cable cannot maintain clean image:
Use an active VGA signal booster/repeater
Or deploy VGA over CAT5e/CAT6 balun extenders (can reach up to 100 m)
For permanent installations, switch to digital interfaces (HDMI, DVI) if possible (digital signals have zero inherent degradation over rated lengths).
1080p: Keep passive VGA under 7.5 m for clean picture
Below 1280×1024: Premium shielded cable safely up to 15–20 m
Any run over 20 m: Avoid passive VGA; use extenders.
Based on our experience as a VGA cable supplier, the following are some general guidelines for the maximum length of a VGA cable without significant signal degradation:
For standard VGA cables with a resolution of up to 1024x768 pixels, the maximum length is typically around 15 meters (50 feet). Beyond this length, the signal may start to degrade, resulting in a loss of image quality, such as blurry or distorted colors, flickering, or reduced sharpness.
For higher-resolution displays, such as those with a resolution of 1920x1080 pixels, the maximum length of a VGA cable is usually around 5 meters (16 feet). At this length, the signal may still be relatively stable, but any further increase in length can lead to significant signal degradation.
If you need to use a VGA cable over a longer distance, you can consider using a VGA extender. VGA extenders are devices that amplify and regenerate the VGA signal, allowing it to be transmitted over longer distances without significant degradation. Our VGA3+6 Cable and VGA3+9 Cable are compatible with many VGA extenders, providing a reliable solution for long-distance VGA signal transmission.
