If you have ever wondered why one USB drive takes minutes to copy files while another completes the task in seconds, the answer is straightforward—USB 2 versus USB 3. In this guide, we will analyze every significant difference, including speed, power, compatibility, and which option you should purchase today.

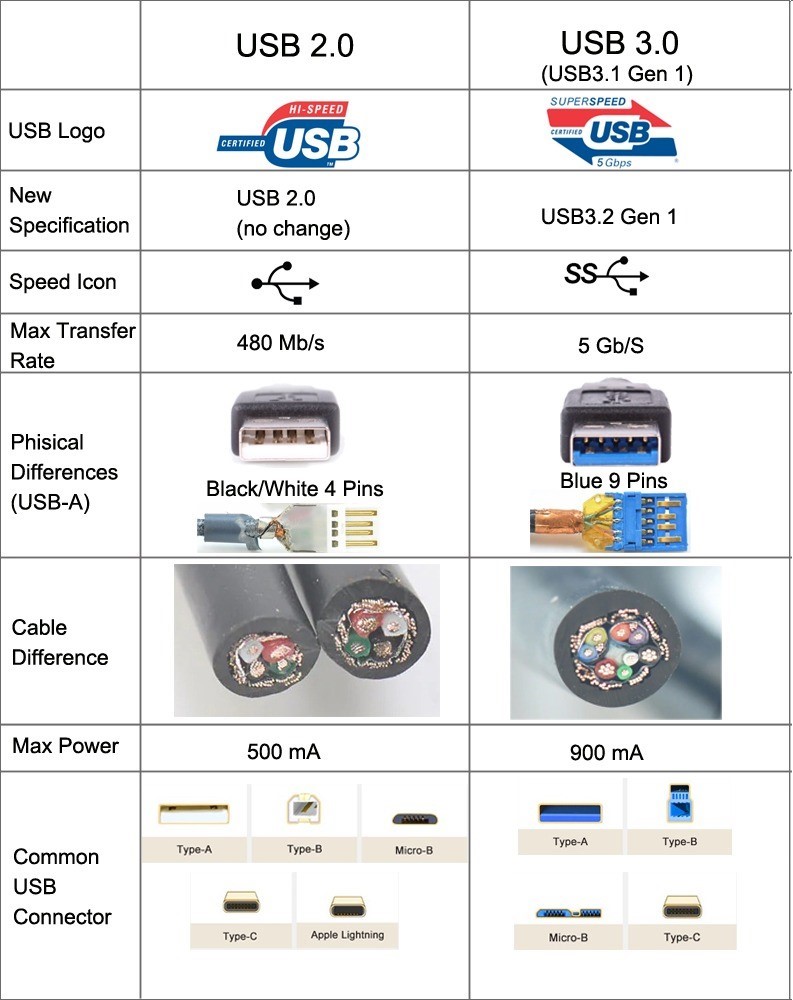

Comparison Aspect | USB 2.0 | USB 3.0 |
|---|---|---|
Theoretical Transfer Speed | 480 Mbps (High-Speed) | 5 Gbps (SuperSpeed, ~10x faster than USB 2.0) |
Port Identification | White/black port interior, no special marking | Blue port interior (industry standard), some marked with "SS" (SuperSpeed) |
Pin Configuration | 4 pins, half-duplex only (cannot send and receive data simultaneously) | 9 pins, full-duplex enabled (simultaneous send/receive) |
Power Delivery | Max 5V/500mA, 2.5W total power | Max 5V/900mA, 4.5W total power, supports more high-power peripherals |
Power Efficiency | No active power saving, higher idle power consumption | Link Power Management enabled, auto-throttles when idle for lower power use |
Backward Compatibility | Only compatible with USB 1.1 | Backward compatible with USB 2.0/1.1 (requires compatible port/adapter) |
Ideal Use Cases | Low-speed peripherals: mice, keyboards, basic flash drives, printers | High-speed/high-power devices: external SSDs, portable hard drives, video capture cards, docking stations |
Bottom line: USB 3 is roughly 10 times faster and offers almost double the power.

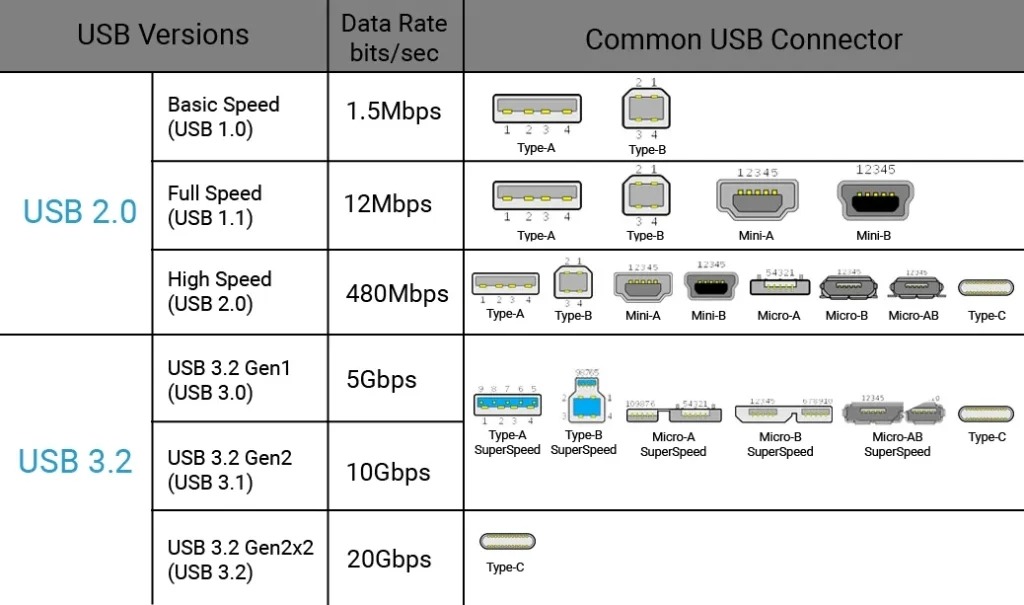

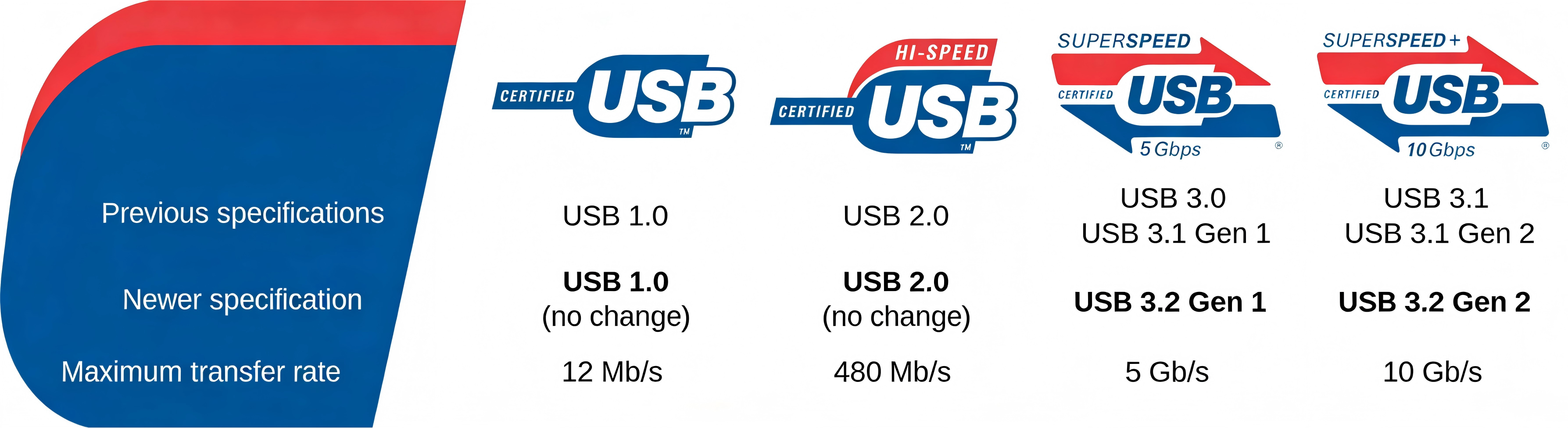

The USB standard has evolved — and been renamed — several times:
• USB 3.0 (2008) → later renamed USB 3.1 Gen 1, then USB 3.2 Gen 1 (all = 5 Gbps)
• USB 3.1 Gen 2 = USB 3.2 Gen 2 (10 Gbps)
• USB 3.2 Gen 2×2 = 20 Gbps (dual-lane, USB-C only)
This naming confusion often misleads buyers. The key takeaway: If you see “5 Gbps,” it’s USB 3-speed no matter what it’s called.
· USB 2.0 operates exclusively in half-duplex mode, meaning it can only send or receive data at any given time.
· USB 3.0 revolutionized this with full-duplex communication, enabling simultaneous send and receive operations.
USB 3 adds four extra wires, totaling nine, allowing separate data lanes for each direction.

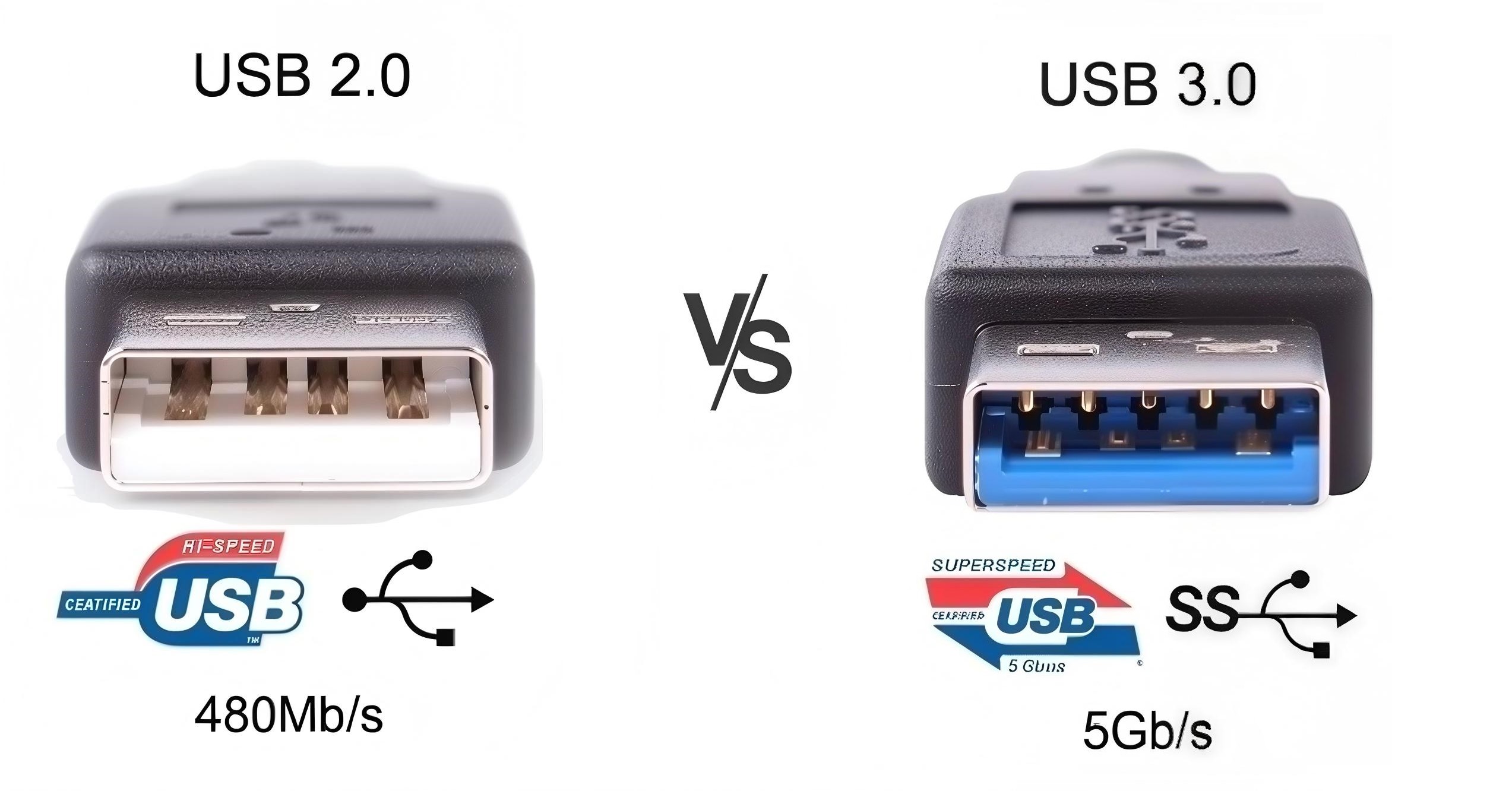

This is the easiest way to tell the difference at a glance, with industry-standard visual cues:
Feature | USB 2.0 Port | USB 3.0 Port |
|---|---|---|
Port Interior Color | Typically black, white, or grey (no standard color, but never blue) | Bright blue (universal industry standard for SuperSpeed USB 3.0) |
Pin Layout | Only 1 row of 4 pins visible inside the port | 2 rows of pins (4 legacy pins + 5 new SuperSpeed pins) for full-duplex transfer |
Port Markings | No special logo, only "USB" text if labeled | Marked with "SS" (SuperSpeed) logo, or "USB 3.0", "USB 3.2 Gen 1" text |
Port Size | Standard Type-A size, shorter internal cavity | Same external Type-A size, longer internal cavity to fit extra pins |
Transfer Speed Test: Plug a certified USB 3.0 flash drive/external SSD into the port and run a file transfer test.
◦ USB 2.0 maxes out at ~30-40 MB/s
◦ USB 3.0 hits ~300-400 MB/s (10x faster)
Power Delivery Test: USB 3.0 ports output 900mA (4.5W), while USB 2.0 only outputs 500mA (2.5W). High-power devices (e.g., 2.5" external hard drives) may fail to work on USB 2.0 without extra power.
Backward Compatibility Note: USB 3.0 ports work with USB 2.0 devices (they will run at USB 2.0 speeds), but USB 2.0 ports cannot deliver USB 3.0 speeds to USB 3.0 devices.
✅ It’s USB 3.0 if:
• Port interior is bright blue
• Marked with "SS" or "SuperSpeed"
• System reports 5 Gb/s+ speed
• Transfers large files at 300+ MB/s
✅ It’s USB 2.0 if:
• Port interior is black/white/grey
• No "SS" marking
• System reports 480 Mb/s speed
• Transfers max out at ~40 MB/s
USB 3.0 is fully backward compatible with USB 2.0, and USB 2.0 is forward compatible with USB 3.0—all devices/cables will work across ports, but performance/power will default to the slowest/least capable component in the chain (port → cable → device).
Yes, it will work normally—but at USB 2.0 speeds (480 Mbps). The USB 3.0 device automatically downgrades its performance to match the USB 2.0 port’s capabilities; no drivers or adapters are needed.
Yes, it will work at its native USB 2.0 speed (no performance boost). USB 3.0 ports retain the 4 legacy pins of USB 2.0 to support older devices, so mice, keyboards, USB 2.0 flash drives, and printers work seamlessly.
Yes—this is the #1 common speed limitation. USB 2.0 cables only have 4 pins (no USB 3.0 pins), so even if you pair a USB 3.0 flash drive with a USB 3.0 port, a USB 2.0 cable will force the entire chain to run at 480 Mbps (USB 2.0 speed).
Yes—this is the #1 common speed limitation. USB 2.0 cables only have 4 pins (no USB 3.0 pins), so even if you pair a USB 3.0 flash drive with a USB 3.0 port, a USB 2.0 cable will force the entire chain to run at 480 Mbps (USB 2.0 speed).
You’re using a USB 2.0 cable (replace with a USB 3.0-certified cable).
The port is a USB 3.0 hub plugged into a USB 2.0 port (plug the device directly into the computer’s native USB 3.0 port).
The computer’s USB 3.0 driver is outdated (update via Device Manager/Manufacturer’s website).
The device is a low-quality USB 3.0 drive (cheap drives often have slow flash memory, even with USB 3.0).
Rare, but possible signal interference: USB 3.0 ports emit high-frequency signals that can disrupt some older USB 2.0 wireless dongles/mice
Setup | Result | Speed/Power |
|---|---|---|
USB 3.0 device → USB 2.0 port | Works | USB 2.0 (480 Mbps) |
USB 2.0 device → USB 3.0 port | Works | USB 2.0 (480 Mbps) |
USB 3.0 device + USB 3.0 port + USB 2.0 cable | Works | USB 2.0 (480 Mbps) |
USB 3.0 device + USB 3.0 port + USB 3.0 cable | Works | USB 3.0 (5 Gbps) |
USB 3.0 hub → USB 2.0 port | Works | All hub devices run at USB 2.0 |
• Clearly label “USB 3.0 (5 Gbps)” on packaging.
• Include “SuperSpeed” logo or “SS” marking on cable plugs.
• Use 9-wire construction for certified USB 3 data cables.
• Test signal integrity and power delivery per USB-IF standards.
USB Version | Data Wires (D+/D- / Tx/Rx Pairs) | Power Wires (VCC/GND) | Max Current (Compliant) | Key Use Case |
|---|---|---|---|---|
USB 2.0 | 28 AWG (standard) / 26 AWG (long cables >2m) | 24 AWG (standard) / 22 AWG (high-power charging) | 500mA (standard) / 1.5A (high-power, 22AWG VCC/GND) | Mice/keyboards, low-speed storage, basic charging |
USB 3.0/3.2 Gen1 (5Gbps) | 28 AWG (SSTP twisted pairs) | 24 AWG (mandatory) | 900mA (standard) / 2A (high-power, 22AWG VCC/GND) | High-speed storage, 2.5” external drives, docking stations |
USB 3.1 Gen2 (10Gbps) | 26 AWG (SSTP twisted pairs, MANDATORY) | 24 AWG (mandatory) / 22 AWG (high-power) | 900mA (standard) / 2A (high-power) | USB 3.1 Gen2 SSDs, 4K video capture, high-speed docking |

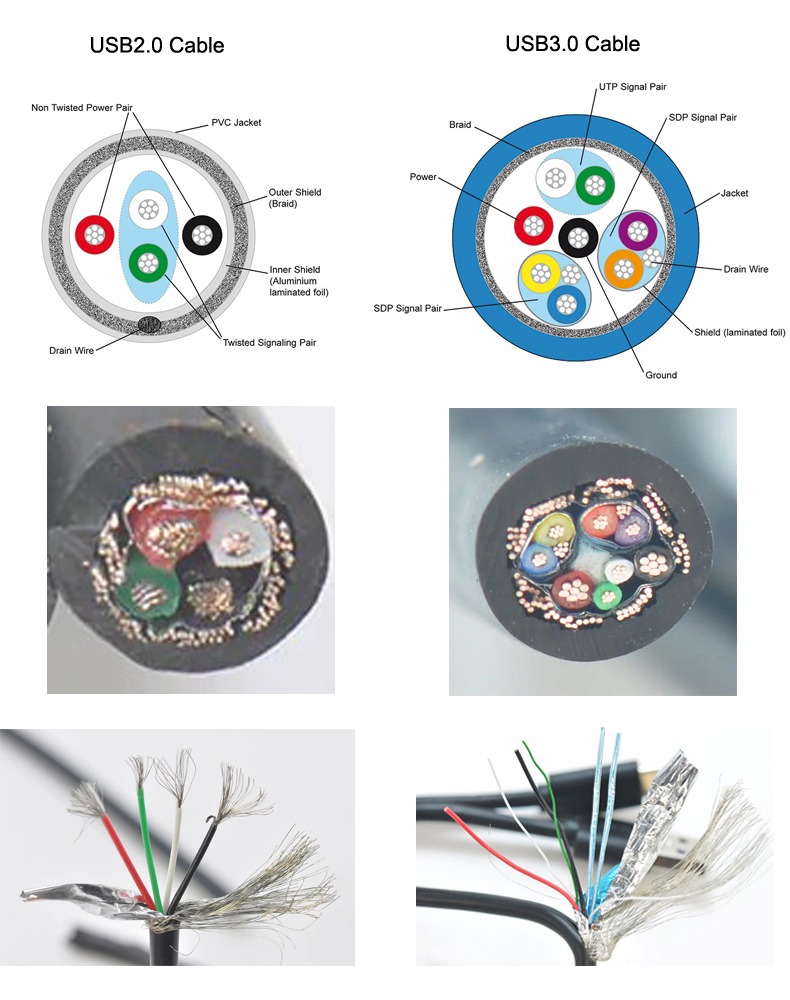

Shielding Layer | Purpose | USB Version Compatibility | Use Case |
|---|---|---|---|
Twisted Pairs (TP) | Reduces crosstalk between data wires (D+/D- / Tx/Rx) – twists cancel out electromagnetic interference. | All (USB 2.0: 1 TP; USB 3.0/3.1: 1 USB 2.0 TP + 2 SuperSpeed TPs) | Mandatory for all USB data cables – no twist = failed signal tests. |
Foil Shielding (Aluminum Foil) | Wraps individual twisted pairs (Foiled Twisted Pair, FTP) or the entire cable core – blocks low-frequency EMI (power lines, industrial machinery). | USB 2.0 (cable core) / USB 3.0/3.1 (individual SuperSpeed TPs = SSTP: Shielded Twisted Pair) | USB-IF mandatory for USB 3.0/3.1 SuperSpeed TPs – prevents crosstalk between 5Gbps/10Gbps pairs. |
Braided Shielding (Tinned Copper Braid) | External layer over the cable core – blocks high-frequency EMI/RFI (Wi-Fi, Bluetooth, cellular) and physical damage to internal wires. | All (USB 2.0: optional; USB 3.0/3.1: recommended; Industrial/Automotive: mandatory) | Consumer high-speed cables, industrial/automotive cables, long cables (>2m). |
Drain Wire | Tinned copper wire in contact with foil/braided shielding – grounds the shield and channels interference to the USB port’s ground pin. | All (mandatory if foil/braided shielding is used) | No drain wire = shielding is ineffective – critical for all shielded USB cables. |
USB Version | USB-IF Max Passive Length | AWG/Shielding for Full Compliance | Key Limitation |
|---|---|---|---|
USB 2.0 (480Mbps) | 5 meters (16.4ft) | 28AWG data/power (≤3m) / 26AWG data +24AWG power (>3m–5m) + foil shielding (recommended) | Signal attenuation – thicker wires minimize loss for 3–5m. |
USB 3.0/3.2 Gen1 (5Gbps) | 3 meters (9.8ft) | 28AWG SSTP data +24AWG power + foil/braided shielding (mandatory) | EMI/signal attenuation – 3m is the physical limit for passive 5Gbps cables. |
USB 3.1 Gen2 (10Gbps) | 2 meters (6.6ft) | 26AWG SSTP data +24AWG power + foil/braided shielding (mandatory) | Extreme signal attenuation – 10Gbps signals cannot travel farther in passive cables. |
USB-C 3.1 Gen2 (10Gbps) | 2 meters (6.6ft) | Same as USB-A 3.1 Gen2 | No additional length for USB-C – port shape does not affect signal limits. |
USB 3.0 represents a significant upgrade over USB 2.0. It offers up to 10 times higher data transfer speed (5 Gbps versus 480 Mbps), increased charging power (900 mA versus 500 mA), and employs more data channels to achieve enhanced performance. USB 3.0 ports are typically blue or marked with \"SS\", whereas USB 2.0 ports are predominantly black or white. Both standards are fully backward compatible; however, devices always operate at the speed of the slower interface or cable.
If you also want know more about USB2.0 VS USB 3.0 VS USB 4.0, Here it is.
