Views: 5809 Author: Site Editor Publish Time: 2026-04-08 Origin: Site
If you’ve ever wondered why one USB drive takes minutes to copy files while another finishes in seconds, the answer is simple — USB 2 vs USB 3 vs USB 4. In this guide, we’ll break down every difference that matters — speed, power, compatibility, and which one you should buy today.
Category | USB 2.0 | USB 3.0 (3.2 Gen1) | USB4 2022 (Gen3) |
|---|---|---|---|
Simplified Speed | Slow (480Mbps) | Fast (5Gbps) | Ultra-Fast (40/80Gbps) |
Connector | Type-A/B | Type-A/B/C | Type-C Only |
PD Power | Minimal (2.5W) | Low (4.5W) | Max (240W) |
Video Support | None | Basic 1080p | 8K@60Hz (DP 2.0) |
Thunderbolt | No | No | Yes (4 native) |
Wire Q'ty | 4 | 9 | 12+ |
Best For | Basic peripherals | Everyday high-speed storage | Pro-grade computing/charging/video |
USB4 is exclusive to Type-C, with optional Thunderbolt 4 integration; all versions support plug-and-play, USB 3.0/4 are backward compatible with older generations
The USB standard has evolved — and been renamed — several times:
• USB 3.0 (2008) → later renamed USB 3.1 Gen 1, then USB 3.2 Gen 1 (all = 5 Gbps)
• USB 3.1 Gen 2 = USB 3.2 Gen 2 (10 Gbps)
• USB 3.2 Gen 2×2 = 20 Gbps (dual-lane, USB-C only)
• USB 4 = 40 Gbps (dual-lane, USB-C only)
This naming confusion often misleads buyers. The key takeaway: If you see “5 Gbps,” it’s USB 3-speed; if you see “40 Gbps” (or 80 Gbps), it’s USB4. Ignore the version numbers—only the speed tells the truth.
· USB 2.0 operates exclusively in half-duplex mode, meaning it can only send or receive data at any given time.
· USB 3.0 revolutionized this with full-duplex communication, enabling simultaneous send and receive operations.
· USB4 elevates this further with dual-lane full-duplex architecture, leveraging two independent data lanes to deliver 2x the throughput of USB 3.0, while maintaining backward compatibility with USB 3.0/2.0 half/full-duplex modes.
USB4 is with 12 cores basically, but 16 cores flexi electronic do at least.

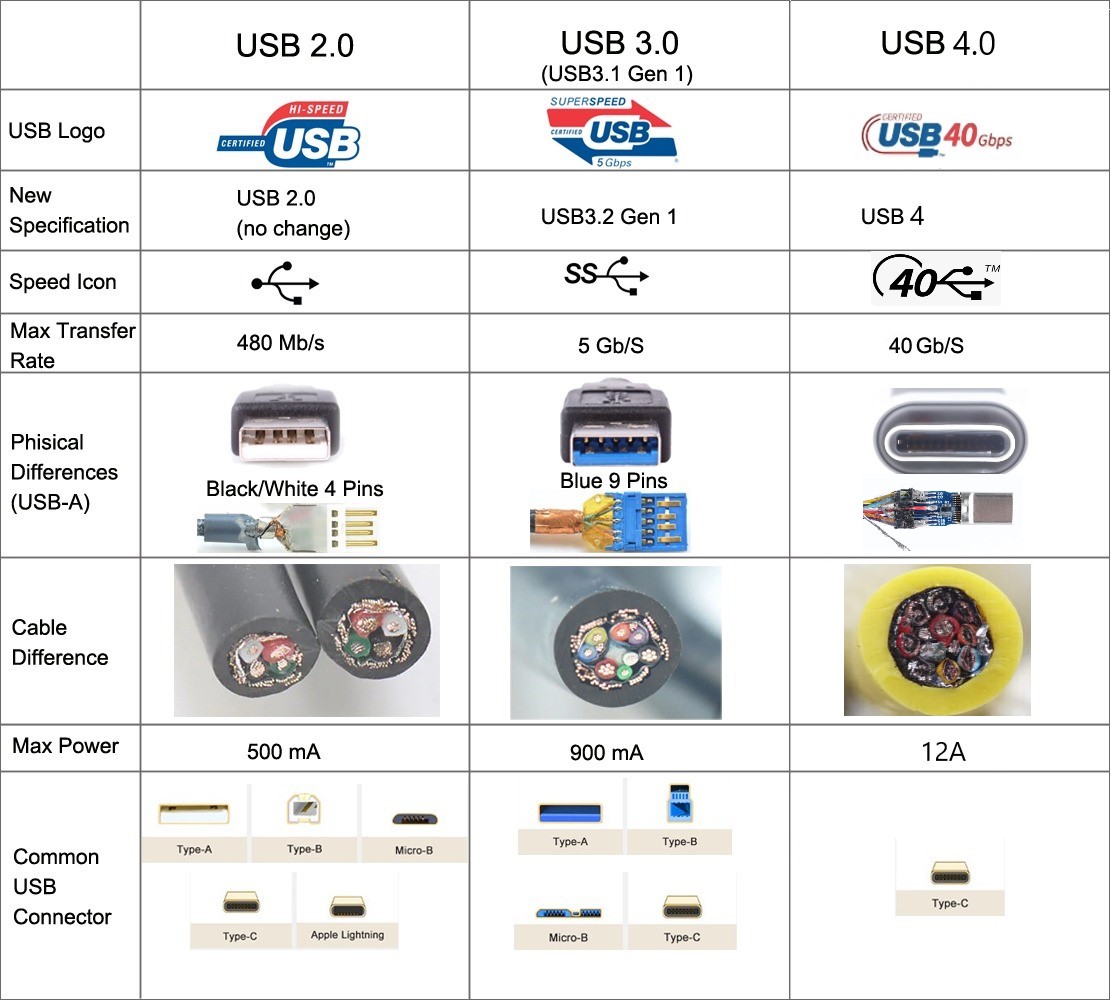

Feature | USB 2.0 | USB 3.0 (3.2 Gen1) | USB4 |
|---|---|---|---|
Visual Wire Count | 4 thin wires (1 data pair) | 9 wires (2 high-speed pairs) | 12+ wires (4 thick shielded pairs) |
Shielding | Optional (basic foil) | Mandatory overall (foil+braid) | Mandatory individual + overall |
Data Mode (Visual) | Single line (send/receive one way) | Two separate lines (send+receive) | Four dual lines (2× send+2× receive) |
Power Wires | Thin VBUS/GND (2.5W) | Standard VBUS/GND (4.5W) | Extra thick VBUS/GND (240W) |
Connector Visual | Type-A/B/Mini/Micro (4-pin) | Type-A (blue)/B/Micro-C (9-pin) | Type-C only (24-pin, reversible) |
Yes — they work together. The connection simply runs at USB 2 speed.
es, but it’s subject to the slowest link rule. A USB4 device connected to a USB 3.x port will drop to the corresponding USB 3.x speed, and to USB 2.0 speed when connected to a USB 2.0 port. Also, USB4 only supports the USB-C connector, so an adapter is required for USB-A ports.
USB 2.0 tops out at 480 Mbps (~40 MB/s); USB 3.2 Gen 1 (formerly USB 3.0) at 5 Gbps (~400 MB/s), USB 3.2 Gen 2 at 10 Gbps (~800 MB/s); USB4 reaches 40 Gbps (~3.2 GB/s). USB4 is over 80 times faster than USB 2.0 and 8 times faster than USB 3.0.
USB4 supports high-end scenarios like external GPUs (eGPUs), high-speed NVMe enclosures, 8K multi-monitor setups, and single-cable laptop docking stations (integrating video, data and 100W charging). These are all unavailable with USB 2.0 and 3.x.
No. USB-C refers to the shape of the connector, not the speed. You can have a USB-C port that runs at USB 2.0 speeds. Always check the specs for “SuperSpeed,” “5 Gbps,” or “10 Gbps.”
Your Need | Best USB Standard | Why |
|---|---|---|
Mouse/keyboard/printer | USB 2.0 | Cheap, no interference, meets all needs |
Daily external storage (HDD/SSD) | USB 3.2 Gen1 | Best cost-performance, fast enough for most files |
4K video/large raw photo transfers | USB 3.2 Gen2 | 10 Gbps speed, affordable pro-level performance |
8K editing/eGPU/laptop docking | USB4 | 40 Gbps + all-in-one video/charging/data |
Legacy device compatibility | USB 2.0 | Works with every old USB port/device |
Future-proof laptop setup | USB4 | Supports latest standards (Thunderbolt, 8K, 100W PD) |
USB Standard | Conductor AWG (Power/Data) | Shielding Requirement | Max Length (Stable Performance) | Key Notes |
|---|---|---|---|---|
USB 2.0 | 28 AWG (data) + 24 AWG (power) | Basic foil shielding | ≤5m (passive) | No EMI shielding needed for <2m; avoid braided shielding (unnecessary cost) |
USB 3.x Gen1 | 28 AWG (data) + 22 AWG (power) | Foil + braided shielding | ≤3m (passive) | Shielding critical to eliminate 2.4GHz Wi-Fi/Bluetooth interference |
USB 3.x Gen2 | 26 AWG (data) + 22 AWG (power) | Foil + braided + drain wire | ≤2m (passive) | Gen2 needs thicker data conductors for 10 Gbps signal integrity |
USB4 (40 Gbps) | 24 AWG (all) | Triple shielding (foil/braided/drain) | ≤0.8m (passive); ≤3m (active) | Active cables need built-in signal repeaters; avoid >3m (speed drops to 20 Gbps) |
• USB-A/Type-C connectors: Use high-precision molded connectors (tolerance ±0.02mm) to prevent loose fits—loose Type-C for USB4 causes intermittent video/data/charging drops (top end-user complaint).
• USB 3.x Micro-B: Avoid mixing with USB 2.0 Micro-B molds—mark USB 3.x Micro-B with "SS" to guide production/end-users (physical incompatibility is a design non-negotiable).
• Type-C for USB4: Use EMI-resistant metal shells to protect high-speed signals; test for 10,000+ plug/unplug cycles (industrial-grade durability) for pro-grade peripherals.
All are fully backward compatible, but performance/power is limited by the slowest component(port/cable/device). USB4 (USB-C only) needs an adapter for USB-A ports.
No—USB3.x Micro-B is physically wider, making them non-interchangeable (USB-A ports are universal for 2.0/3.x).
Yes, but it will throttle to the port’s speed (USB4 → USB3.x = 5/10 Gbps; USB4 → USB2.0 = 480 Mbps).
USB2.0: 480 Mbps (~40 MB/s); USB3.2 Gen1: 5 Gbps (~400 MB/s); USB3.2 Gen2:10 Gbps (~800 MB/s); USB4:40 Gbps (~3.2 GB/s).
The most common causes: mixed-gen components (e.g., USB4 drive + USB3.0 cable), uncertified low-quality cables, or disabled UASP (for storage).
USB4 requires the 24-pin USB-C connector to support 40 Gbps data, 100W PD, and video output—USB-A lacks the pin count for these features.
✅ Foil shielding (≥2m cables) + ferrite beads (high-speed devices)
✅ 28/24 AWG conductors (data/power)
✅ FCC/CE EMI compliance
✅ No unnecessary USB 3.x components (cost control)
✅ USB-IF certification + SS logo
✅ Foil + braided shielding (mandatory)
✅ UASP support (storage enclosures)
✅ 5V/900mA power + OCP protection
✅ Signal integrity testing (5/10 Gbps)
✅ USB-IF/Thunderbolt certification (if claimed)
✅ 24 AWG triple shielding + active cables (≥1m)
✅ 40 Gbps data + DP 2.0 + 100W PD 3.1
✅ PCIe 4.0 x4 controllers + thermal management
✅ Cross-platform compatibility (Windows/macOS/AMD/Intel)
