If you have ever wondered why some USB‑C cables charge your laptop at 100W while others only trickle charge your phone at 15W, or why high-speed file transfers fail on seemingly identical cables, the answer lies in a tiny, invisible component: the E-Marker Chip. Short for Electronic Marker Chip, this minuscule microchip embedded in most modern USB‑C cables acts as the digital ID and safety translator for all power and data traffic passing through the cable. Despite its nearly microscopic size, it is the core component that governs USB‑C charging speed, data transmission performance, and device connection safety.

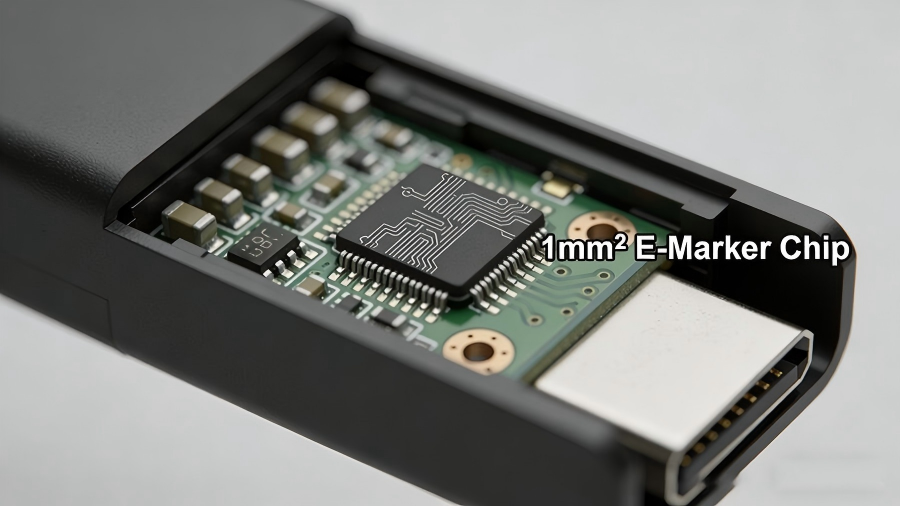

Defined by the USB Implementers Forum (USB-IF), an E-Marker chip is a compact integrated circuit (typically around 1mm²) built into the connector head of certified USB‑C cables, high-power adapters, and professional USB-C accessories . Unlike ordinary passive cable components, this chip is programmable and stores a complete set of official performance parameters of the cable.
You can simply understand it as the digital passport of a USB‑C cable. Just as customs verify identity documents before granting access, connected devices including chargers, laptops, smartphones, and external docks will first “check” the E-Marker chip’s data once a connection is established . Only after confirming the cable’s certified capabilities will the system negotiate and activate the maximum safe power and data speed for transmission.
Not all USB‑C cables require an E-Marker chip. Per USB-IF specifications, basic USB 2.0 USB‑C cables that only support up to 3A current and 60W power transmission can omit the chip. In contrast, all cables supporting higher power, faster data transfer, and extended USB-C functions must be equipped with a certified E-Marker chip .
The E-Marker chip’s responsibilities cover three critical dimensions of USB‑C connection: power safety, data transmission specification, and device compatibility authentication. It stores and transmits detailed cable information to standardize device negotiation and avoid hardware damage or performance limitation.
This is the most essential and widely used function of the E-Marker chip. The chip stores key power parameters: maximum supported voltage, rated current, and certified charging wattage (ranging from 60W standard to 240W EPR extended power) . When you connect a charger to a terminal device, the charger and device communicate via the USB PD protocol through the cable’s CC (Configuration Channel) pin, reading data from the E-Marker chip in real time .
The system will strictly limit the output power based on the cable’s certified capacity. For example, a standard unmarked USB‑C cable is locked at a maximum of 60W. Even if you use a 100W gallium nitride charger and a device that supports 100W fast charging, the unmarked cable will block high-power output and downgrade the charging speed to 60W or lower. This mechanism effectively prevents overcurrent, overheating, and short circuits caused by mismatched cable load capacity, protecting batteries and charging circuits .
Beyond charging, the E-Marker chip encodes the cable’s data transmission specifications, including support for USB 2.0, USB 3.2 Gen 1, Gen 2, and even Thunderbolt 4 protocols . It also marks core parameters such as signal latency and TX/RX directionality. This explains why some USB‑C cables only support 480Mbps basic transmission, while others enable 10Gbps, 20Gbps, or even 40Gbps ultra-high-speed data transfer and video output.
Without E-Marker authentication, devices cannot activate high-bandwidth data protocols. Even with high-performance devices, the connection will automatically downgrade to basic USB 2.0 speed, failing to meet the demands of large file transmission, 4K/8K video output, and external GPU docking.
The chip also stores manufacturer information, product model, and VCONN power support data, enabling formal compatibility verification between devices . It effectively identifies non-standard or counterfeit cables in the market. Many branded devices will restrict partial fast charging and high-speed functions when connected to uncertified cables without valid E-Marker chip data, avoiding hidden dangers from inferior hardware.
The entire working process is an automatic, millisecond-level handshake negotiation, requiring no manual operation:
Step 1: Physical connection – Plug the USB‑C cable into the power source and terminal device to complete circuit connection.
Step 2: Chip detection – The power source sends a detection signal through the CC pin to check whether the cable has an E-Marker chip and reads stored parameter data.
Step 3: Capability negotiation – The charger, cable, and device conduct three-way matching to confirm the maximum safe power and data speed supported by all parties.
Step 4: Function activation – The system locks the optimal transmission specification. If the cable supports high power and high speed, full performance is activated; if not, the system automatically downgrades to safe low-power and low-speed mode .

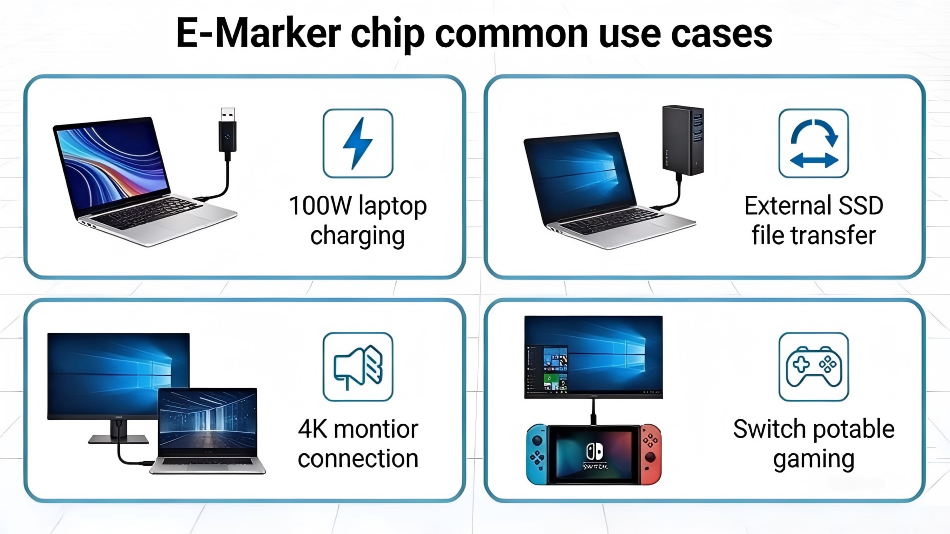

Ordinary unmarked USB‑C cables are sufficient for daily low-power scenarios, but the E-Marker chip is mandatory in the following high-demand usage scenarios to ensure full performance and safety.
All thin-and-light laptops, gaming laptops, and tablets that support 65W, 100W, 140W, or 240W USB PD fast charging require E-marked cables. Unmarked cables are limited to 60W maximum power, resulting in extremely slow laptop charging and even failure to charge while working. For mobile phones supporting 80W, 100W, and above super fast charging, official E-marked cables are also required to activate full-speed charging.
If you need to transfer large-capacity files (such as 4K videos, large game installation packages) or use USB‑C to realize screen projection, external display connection, and video capture, an E-marked cable is essential. Only marked cables support USB 3.0 and above high-speed protocols and DP video output functions, avoiding frame drops, blurry images, and slow transmission.
Thunderbolt 3/4 full-function cables are all equipped with E-Marker chips. When connecting external graphics cards, high-speed solid-state drives, multi-port docking stations, and other professional equipment, unmarked cables cannot recognize the Thunderbolt protocol, leading to connection failure or severe performance attenuation.
Cables longer than 1 meter are prone to voltage drop and signal attenuation. E-marked long cables have calibrated signal and power parameters, which can stabilize transmission efficiency and ensure charging and data stability during long-distance connection.
Most users cannot distinguish cable types by appearance, but their performance gaps are obvious:
Non-E-Marked Cable
No built-in chip, passive basic cable
Max charging power: 60W (20V/3A)
Max data speed: 480Mbps (USB 2.0)
No video output or Thunderbolt support
Suitable for: Daily mobile phone slow charging, ordinary data synchronization
E-Marked Cable
Built-in certified E-Marker chip, active identification
Max charging power: Up to 240W (USB PD EPR)
Max data speed: 10Gbps–40Gbps (USB 3.2/4, Thunderbolt)
Support 4K/8K video output and multi-device docking
Suitable for: Laptop fast charging, high-speed transmission, professional expansion
Feature | Non-E-Marker USB-C Cable | E-Marker Equipped USB-C Cable |
|---|---|---|
Max Power Delivery | Up to 60W (20V/3A) | Up to 240W (48V/5A) |
Max Data Speed | Up to 480Mbps (USB 2.0) | Up to 80Gbps (USB4 2.0 / Thunderbolt 5) |
Video Output Support | ❌ No Alt Mode support | ✅ Supports 4K/8K DisplayPort/HDMI Alt Mode |
Safety Compliance | Often uncertified, risk of overheating at high power | Required for USB-IF certification, meets global safety standards |
Typical Price | $1-$3 | $3-$15 |
Many cheap counterfeit cables on the market falsely advertise 100W fast charging and high-speed transmission without genuine E-Marker chips. Using such cables will not only fail to achieve the promised performance but also cause risks such as device overheating, slow charging, and interface damage.
When purchasing high-performance USB‑C cables, prioritize products with USB-IF certification and clear parameter labeling. For daily low-power use, ordinary unmarked cables are cost-effective and sufficient; for high-power charging and high-speed transmission scenarios, never skimp on certified E-marked cables.
❌ Myth 1: All USB-C cables need an E-Marker
Truth: For low-power use cases (charging wireless earbuds, Bluetooth mice, or 15W old phones), a cheap non-E-Marker cable works perfectly fine. No need to overspend!
❌ Myth 2: E-Marker cables are always expensive
Truth: You can get a USB-IF certified 100W E-Marker cable for as little as $3-$5 from reputable brands. Only high-speed Thunderbolt 4/USB4 E-Marker cables carry a premium price tag.
❌ Myth 3: A cable with an E-Marker is always high-quality
Truth: The E-Marker is just an ID tag – it doesn’t improve build quality. Always look for USB-IF certification to confirm the cable meets safety and performance standards, not just an E-Marker label.
A: We don’t recommend it. Your laptop will either charge at a capped 60W speed, or not charge at all. Uncertified non-E-Marker cables may overheat if forced to carry more than 3A of current.
A: Look for these labels on packaging or product pages: 100W/240W PD, USB 3.2/Thunderbolt/USB4, or “video output support”. All cables with these features are required to have an E-Marker. You can also use a USB-C power meter to test for E-Marker support.
A: Yes. All Apple USB-C charge cables that support 61W+ charging, as well as all Apple Thunderbolt 3/4 cables, include genuine E-Marker chips.
A: In rare cases, physical damage (bending, fraying) can break the E-Marker. If your cable used to support fast charging but no longer does, the E-Marker is likely the culprit.
The E-Marker chip is the invisible backbone of the modern USB‑C ecosystem. It solves the compatibility chaos of universal USB‑C interfaces, balances performance and safety, and enables stable high-power charging and high-speed data transmission. Understanding its functions and application scenarios allows you to select the most suitable cable, maximize the performance of electronic devices, and avoid potential safety hazards brought by mismatched accessories.
