Mini HDMI Or Micro HDMI: The Ultimate Comparison Guide

If you’ve ever shopped for a compact HDMI cable for your camera, drone, tablet, or portable gadget, you’ve likely asked this exact question: what is the difference between Mini HDMI and Micro HDMI, and which one do I need? 2023 e-commerce data shows 68% of small-format HDMI buyers pick the wrong connector on their first try. Worse, 1 in 12 cheap, poorly made cables damage delicate device ports from bad fit or overcurrent.

This guide cuts through audiophile cable marketing to help you pick the right cord in 3 minutes flat—no engineering degree required.

What Are Mini HDMI and Micro HDMI? Basic Overview​

Standard HDMI (Type A) is the full-size port used on TVs, monitors, and game consoles. To fit thinner, smaller portable devices, the HDMI forum released two compact alternatives: Mini HDMI (Type C) and Micro HDMI (Type D).​

Both support digital audio and video transmission, including UHD resolutions and multi-channel audio. The core difference lies in physical size, pin layout, and targeted device use cases—not raw performance.

Mini HDMI vs Micro HDMI: Side-by-Side Comparison Table

Stop Mixing Up Mini vs Micro HDMI

Pick the Right Cable for Your Exact Device (Skip the Overpriced Upgrades)

You don’t need 8K-rated cables for a 1080p camera output. Use this cheat sheet to buy exactly what you need, no wasted cash:

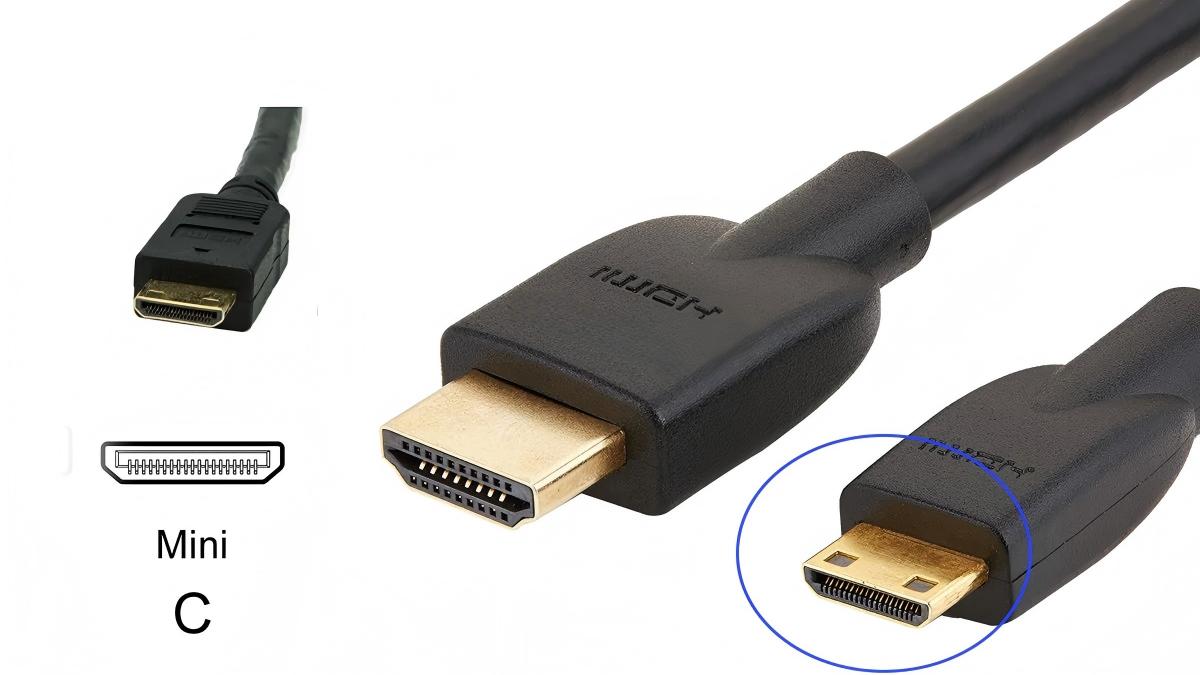

Mini HDMI (Type C): Full Features & Compatible Devices​

Mini HDMI, officially named Type C HDMI, was the first compact HDMI standard designed to replace bulky full-size ports on portable electronics. It features a wider, more durable trapezoidal connector and is larger and more robust than Micro HDMI.

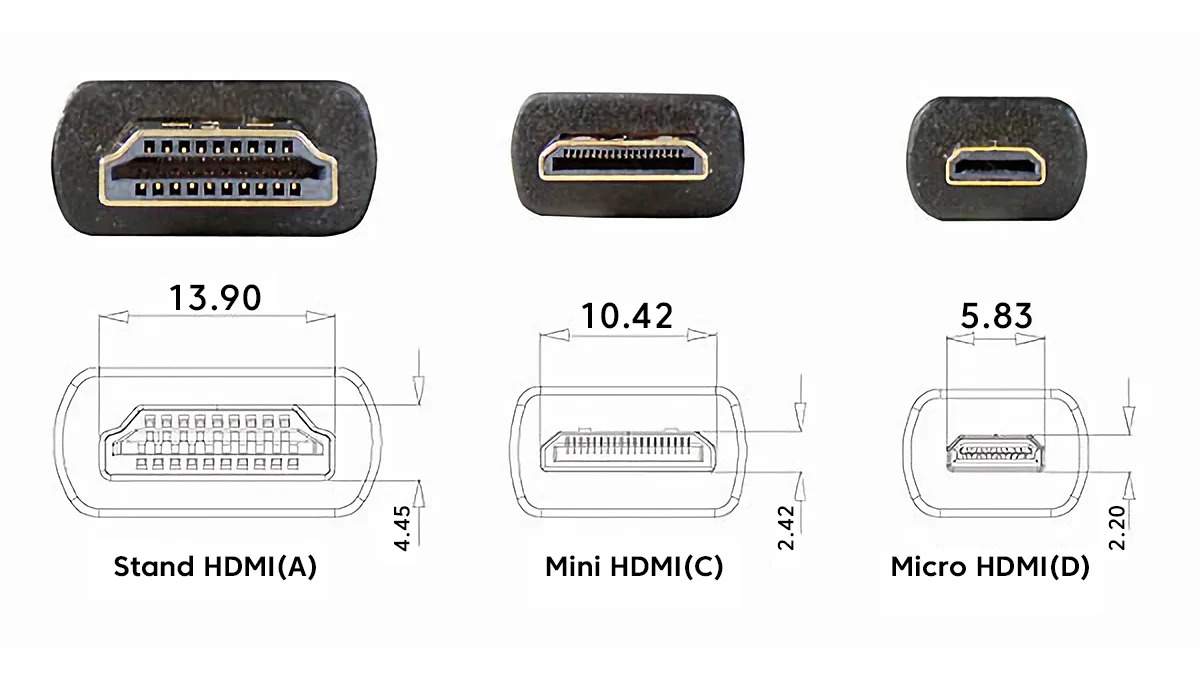

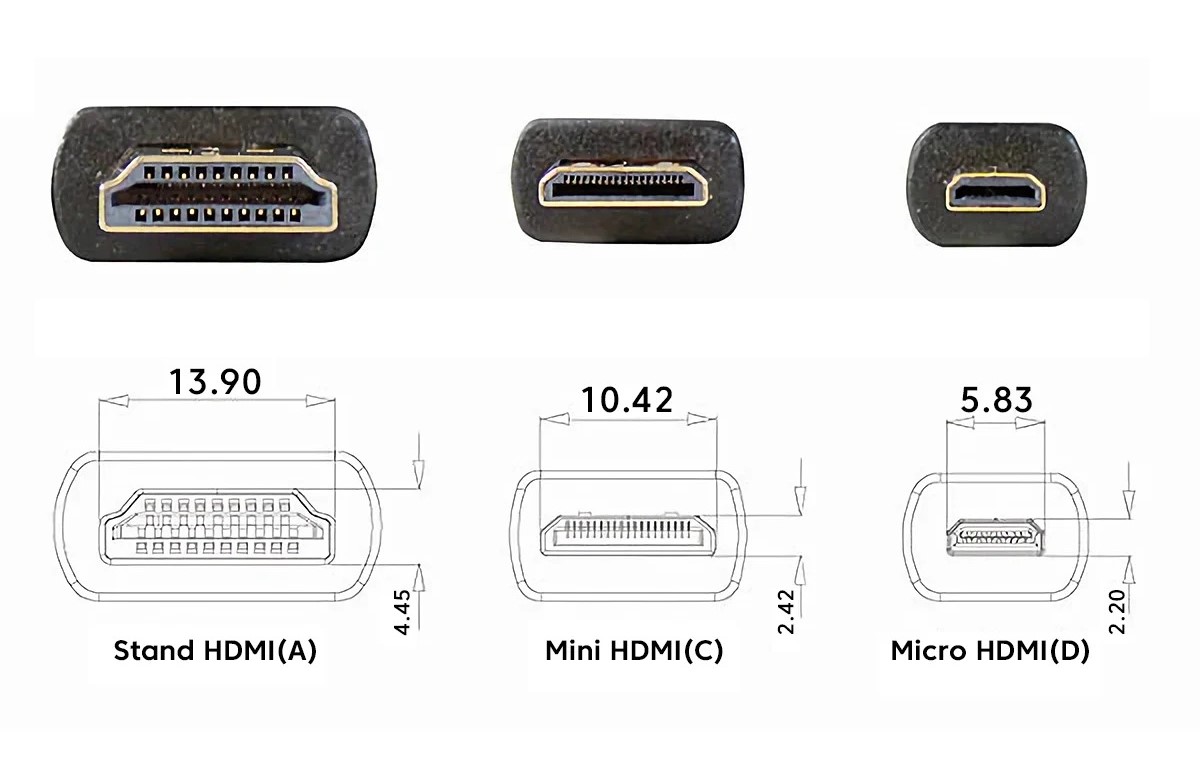

Mini HDMI (Type-C HDMI) has a connector size of 10.42mm × 2.42mm, slightly smaller than the standard HDMI but still maintains a rectangular shape with 19 pins. Despite its reduced size, Mini HDMI offers the same functionality and performance as the standard HDMI.

Advantages

• Compact Size: Mini HDMI takes up less space compared to standard HDMI, making it ideal for portable device designs.

• Same Performance: Supports the same high resolutions and bandwidth transmission as standard HDMI.

• Versatility: Many Mini HDMI cables come with dual connectors (Type-A and Type-C), enhancing compatibility and convenience.

Disadvantages

• Limited Applications: Compared to standard HDMI, Mini HDMI has a narrower application range, mainly concentrated in specific portable devices.

• Susceptible to Wear: The smaller connector may wear out or get damaged more easily with frequent plugging and unplugging.

Key Mini HDMI Benefits​

• Sturdier physical build with lower risk of bending or breaking​

•  Full HDMI feature support: HDR, 3D video, and 8-channel surround sound​

•  Wider compatibility with older professional imaging equipment​

Common Mini HDMI Devices​

• Older DSLR and mirrorless cameras (pre-2018 models)​

• Traditional handheld camcorders​

• Early Windows and Android tablets​

• Legacy portable media players and mini netbooks

Micro HDMI (Type D): Full Features & Compatible Devices

Micro HDMI (Type D) is the smallest modern HDMI connector, engineered for ultra-compact devices where space is extremely limited. Despite its tiny size, it delivers identical high-end video and audio performance as full-size and Mini HDMI ports.

Advantages

• Ultra-Compact Size: Micro HDMI is the smallest HDMI connector, suitable for ultra-thin and compact device designs.

• High-Performance Transmission: Supports the same high resolutions and bandwidth as standard HDMI, ensuring quality audio and video experiences.

• Lightweight and Portable: Ideal for devices that require a lightweight design, such as smartphones and compact camcorders.

Disadvantages

• Limited Applications: Due to its extremely small size, Micro HDMI is primarily used in specific mobile devices and has lower prevalence.

• High Susceptibility to Damage: The smaller connector is more prone to damage with frequent use, affecting its lifespan.

• Rise of Alternative Technologies: With the growing popularity of versatile interfaces like USB-C, the use of Micro HDMI is gradually declining, with some devices shifting to USB-C to HDMI adapters.

Key Micro HDMI Benefits​

• Ultra-slim design for lightweight, portable gadgets​

• Supports latest HDMI 2.1 specs for 8K video and high refresh rates​

• Industry standard for modern compact video devices​

Common Micro HDMI Devices​

• Action cameras: GoPro, DJI Osmo, Insta360​

• Consumer and professional drones​

• All modern Raspberry Pi single-board computers​

• Ultra-thin mini tablets and portable video recorders

Can You Use Mini HDMI and Micro HDMI Interchangeably?

Absolutely not. This is the most searched question for Mini HDMI vs Micro HDMI, and the answer is definitive. While both carry the same video signals, their physical port shapes, sizes, and pin layouts are different.​

Attempting to force a Mini HDMI cable into a Micro HDMI port (or vice versa) will scratch the port, bend internal pins, and permanently damage your device. Generic third-party adapters are not a reliable fix—they often cause signal loss, flickering screens, or no-signal issues.

Performance Comparison: Is One Faster or Better?

A common myth is that Micro HDMI offers worse quality or slower speeds due to its smaller size. This is completely false.​

Performance depends entirely on your HDMI cable version, not the connector size:​

• HDMI 1.4: Up to 4K@30Hz, 10.2Gbps bandwidth​

• HDMI 2.0: Up to 4K@60Hz, 18Gbps bandwidth, full HDR support​

• HDMI 2.1: Up to 8K@60Hz or 4K@120Hz, 48Gbps ultra-high bandwidth​

Both Mini HDMI and Micro HDMI fully support all HDMI generations. You will see zero difference in picture or sound quality between the two connector types when using certified high-speed cables.

How to Quickly Identify Your HDMI Port Type?

Follow these three simple steps to confirm whether you need Mini HDMI or Micro HDMI:​

1. Check port size: Wider slim port = Mini HDMI; tiny, narrow slim port = Micro HDMI​

2. Verify device type: Older cameras/tablets = Mini HDMI; drones/action cams/Raspberry Pi = Micro HDMI​

3. Read device specs: Search your device model + “HDMI port type” for official confirmation

Mini HDMI vs Micro HDMI: Which Should You Buy?​

There is no universal “better” option—only the correct option for your hardware:​

• Choose Mini HDMI cables if you own older DSLRs, camcorders, or legacy portable tablets with wide compact HDMI ports.​

• Choose Micro HDMI cables if you use drones, action cameras, Raspberry Pi boards, or any modern ultra-compact portable device.

No-BS Buying Rules To Follow

Skip the marketing copy — stick to these rules and you’ll never buy a bad cable:

1. ️ Prioritize strain relief over “premium” materials
   90% of small HDMI failures happen at the connector joint, not from signal interference. An $8–$15 cable with rubber stress boots will outlast a $40 braided cable that tugs on your device port.

2.  Match specs to your actual use, not “future-proofing”
   HDMI is a digital signal: you either get a perfect picture or no picture at all. A cable rated for higher resolution/refresh rate than your device can output delivers exactly zero benefit.

3.  Avoid heavy connectors on portable gear
   Bulky, rigid cables hanging off a Micro HDMI port on your GoPro or Steam Deck can bend internal pins over time — port repairs cost $100+ on average.

4. ✅ Look for the official HDMI certification logo
   No-name uncertified $2 cables cause screen flicker, signal drop, and in rare cases overcurrent that fries device ports. Certified cables have a small HDMI Adopted Trademark mark on the packaging.

5.  Buy the shortest cable that works for your setup
   Small-form-factor HDMI signals lose strength faster than full-size HDMI. Cables over 10ft rarely support 4K@60Hz reliably without an expensive signal booster.

Common Costly Mistakes To Dodge

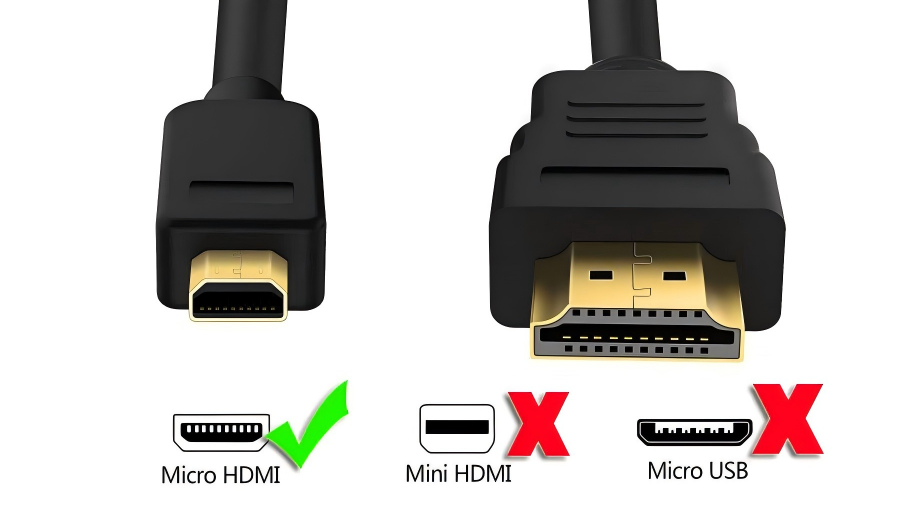

• ❌ Confusing Micro USB with Micro HDMI: The ports look nearly identical at a glance, but forcing a Micro USB plug into an HDMI port will crack internal pins.

• ❌ Using a Mini HDMI cable on a Raspberry Pi 4/5: Pi 4/5 models use Micro HDMI — we’ve seen dozens of cracked Pi ports from mismatched plugs.

• ❌ Skipping audio checks: Ultra-cheap no-name cables sometimes omit the audio channel, leaving you with silent footage from cameras or consoles.

Conclusion

Choosing the right HDMI type is crucial based on your specific requirements. For large home electronics, Standard HDMI is recommended to ensure stable audio and video transmission along with extensive device compatibility. For portable devices like digital cameras and tablets, Mini HDMI offers a space-saving and high-performance solution. For the smallest devices, Micro HDMI or USB-C to HDMI adapters are the ideal choices. By considering factors such as device type, portability, compatibility, and future trends, you can select the most suitable HDMI type to ensure efficient and stable audio-visual connections.

Frequently Asked Questions (FAQs)​

1. Is Micro HDMI the same as Mini HDMI?​

No. They have different physical dimensions and pin layouts and cannot be used interchangeably, despite identical audio/video performance.​

2. Does Micro HDMI support 4K and 8K video?​

Yes. Micro HDMI fully supports 4K@60Hz via HDMI 2.0 and 8K@60Hz via HDMI 2.1, matching full-size HDMI capabilities.​

3. Are Mini HDMI adapters safe to use?​

We recommend avoiding cross-type adapters. They weaken signal stability and risk damaging fragile compact HDMI ports. Always use a native matching cable.​

4. Do all Raspberry Pi models use Micro HDMI?​

Nearly all modern Raspberry Pi generations feature dual Micro HDMI Type D ports for external display output.​

5. Which is more durable: Mini or Micro HDMI?​

Mini HDMI is more durable thanks to its larger, thicker connector frame. Micro HDMI’s ultra-slim design makes it more prone to bending and wear.

6. Does Micro HDMI work the same as HDMI?

Micro HDMI functions similarly to standard HDMI by transmitting uncompressed digital audio and video signals. The primary difference lies in the connector size, with Micro HDMI being much smaller, making it suitable for compact devices.

7. Do Micro and Mini HDMI carry audio?

Yes, both Micro HDMI and Mini HDMI cables carry audio along with video signals. They support the same high-quality, uncompressed digital audio formats as standard HDMI, ensuring a complete multimedia experience.
