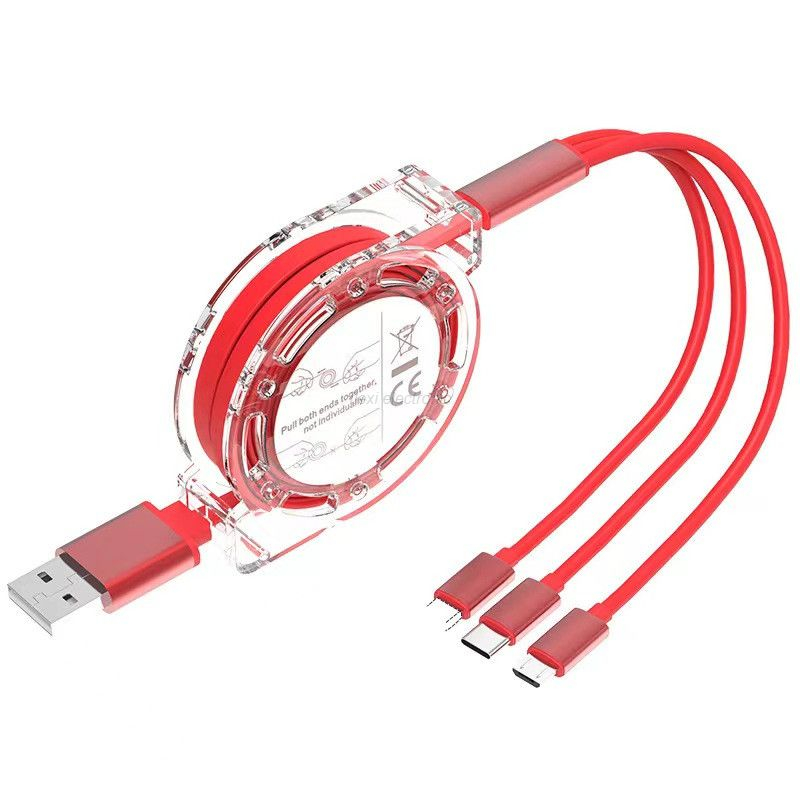

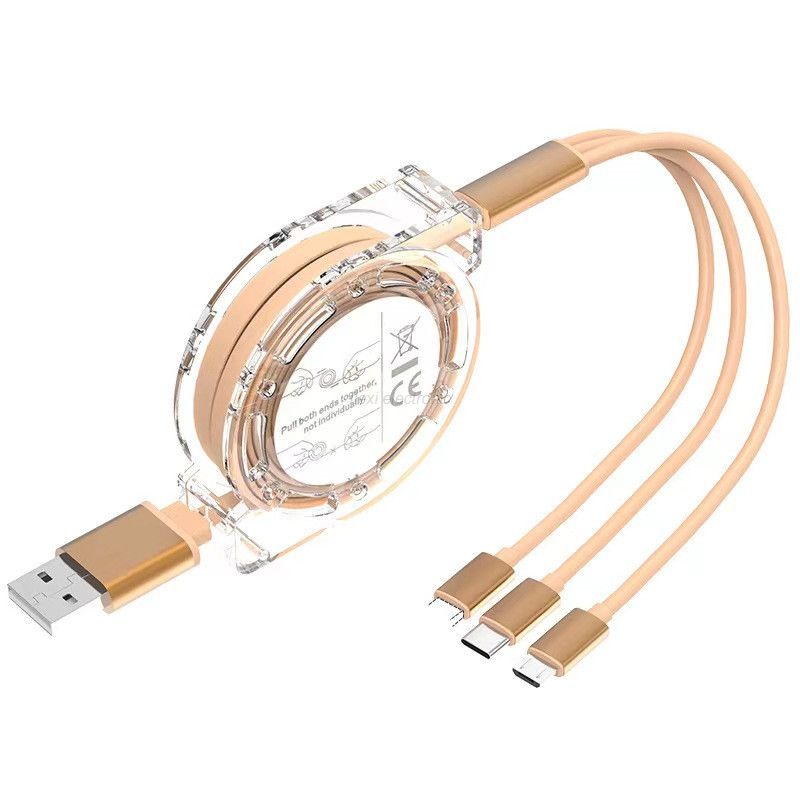

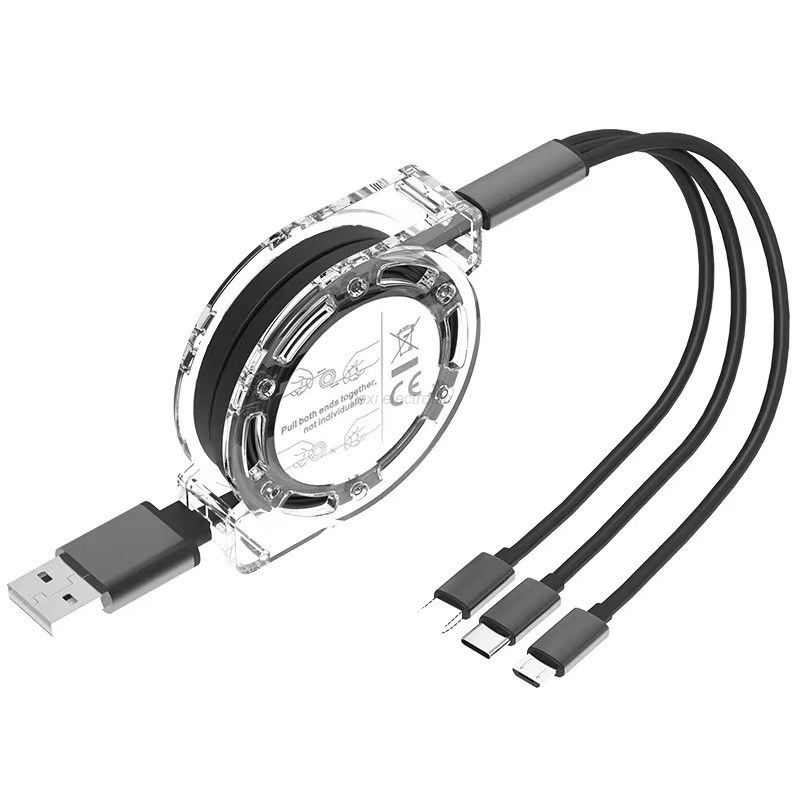

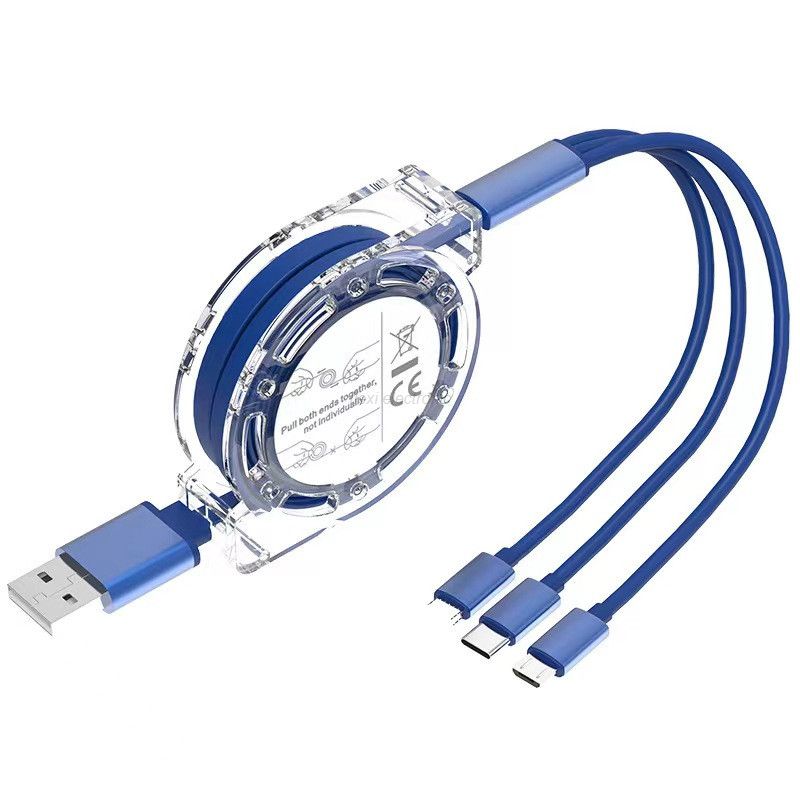

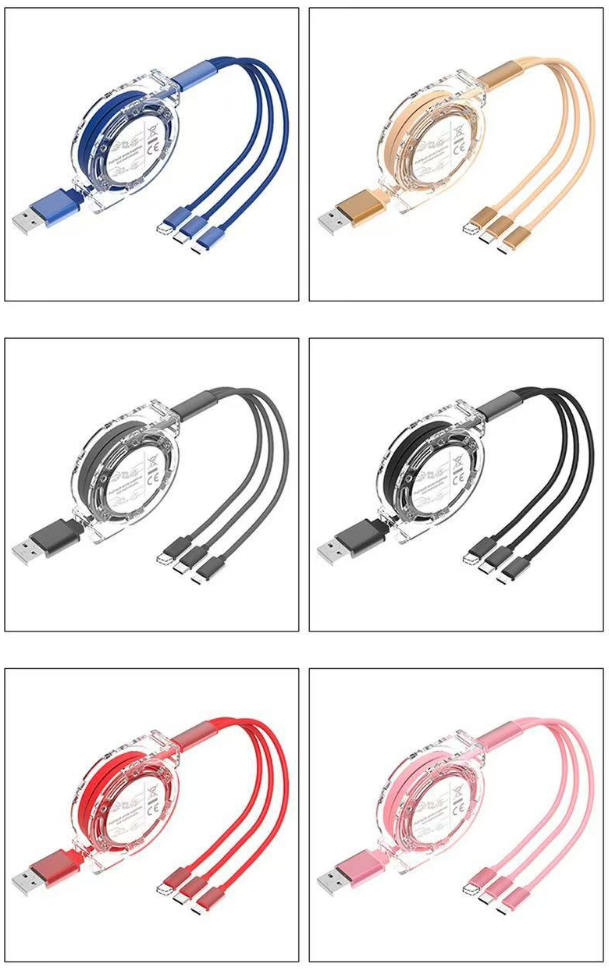

Retractable 3 In 1 USB Charging Cables

1. Visual Inspection

• Check for Damage: Inspect the cable and connectors for any visible damage or fraying.

•

• Connectors Condition: Ensure the USB-C, Micro-USB, and Lightning connectors are clean and free from debris.

•

2. Test Each Connector

• Gather Devices: Use devices compatible with each connector type (e.g., a smartphone with USB-C, a tablet with Micro-USB, an iPhone for the Lightning connector).

•

• Plug and Charge: Connect each type of device to a power source using the 3-in-1 cable and check if it charges properly.

•

• Monitor Charging Speed: Confirm that the charging speed matches the expected performance (note that some 3-in-1 cables may not support fast charging on all connections).

•

3. Data Transfer Test

• Connect to a Computer: Use the cable to connect each device to a computer.

•

• File Transfer: Attempt a simple file transfer to ensure data connectivity. Check that the computer recognizes the device and that files can be transferred without interruption.

•

• Test Each Connector: Repeat for all three connectors to verify that data transfer works consistently.

•

4. Check Compatibility

• Device Response: Make sure each type of device responds correctly when connected (e.g., the device should show a charging indicator or data transfer prompt).

•

• Charging Consistency: Leave each device connected for a few minutes to confirm the cable maintains a stable connection without disconnections or errors.

•

5. Verify Fast Charging (if applicable)

• Use a Fast-Charging Adapter: Connect the cable to a compatible fast-charging adapter and device that supports fast charging.

•

• Check Charging Rate: Use a battery monitoring app or check the device’s settings to confirm the cable supports the fast-charging feature.

•

6. Check for Heat Buildup

• Observe Cable Temperature: While testing, feel the cable and connectors for any excessive heat, which could indicate a potential issue or poor quality.

•

• Ensure Safety: A good-quality cable should not overheat during normal use.

•

7. Use a USB Tester (Optional)

• Connect a USB Tester: If you have access to a USB tester, connect it between the power source and the cable to measure the current (amps) and voltage.

•

• Verify Output: Ensure the output matches the specifications for charging your devices effectively.

•

8. Repeat the Process

• Consistency Check: Test the cable multiple times over a period of days to make sure it continues to work reliably with each device.

•

The core of a charging cable is an essential component that determines its performance, durability, and functionality. Here's an overview of the main aspects of the charging cable core:

1. Materials Used in the Core

The core consists of multiple strands of conductive material. The most commonly used materials are:

• Copper:

  • Known for excellent conductivity and durability.

  • Often used in high-quality cables for fast charging and data transfer.

• Aluminum or Copper-Clad Aluminum (CCA):

  • A cheaper alternative to pure copper but with lower conductivity and durability.

• Silver-Plated Copper:

  • Used in premium cables for enhanced conductivity.

2. Wire Gauge

• AWG (American Wire Gauge):

  • The thickness of the core wires is measured in AWG. Lower AWG numbers (e.g., 24 AWG) indicate thicker wires that can carry more current, making them suitable for fast charging.

  • Higher AWG numbers (e.g., 30 AWG) are thinner and typically used for data transfer or low-power applications.

3. Number of Strands

• Stranded vs. Solid Core:

  • Stranded cores (multiple thin wires) are more flexible and resistant to breakage due to bending.

  • Solid cores (a single thick wire) may be used in less flexible applications.

4. Shielding and Insulation

• Shielding:

  • Surrounds the core to reduce electromagnetic interference (EMI), ensuring stable data transfer and charging performance.

  • Types of shielding include foil shielding and braided shielding.

• Insulation:

  • Covers the individual core wires to prevent short circuits and damage. Materials like PVC or thermoplastic elastomers are commonly used.

5. Number of Internal Wires

• Power Wires:

  • Typically thicker, as they carry the charging current.

• Data Wires:

  • Usually thinner, designed for USB data transfer (e.g., for syncing files).

• Ground Wire:

  • Acts as a return path for electrical current to ensure a stable connection.

6. Core and Fast Charging

• High-Current Support:

  • Fast charging protocols (like USB-C PD or Quick Charge) require thicker power cores and high-quality materials to handle higher currents safely.

• Resistance Levels:

  • Low resistance in the core (measured in ohms) improves charging efficiency and reduces heat generation.

7. Core Durability

• Flex Life:

  • High-quality cores are designed to withstand repeated bending without breaking, often enhanced by additional reinforcements like Kevlar fiber.

• Heat Resistance:

  • Good cores are resistant to overheating, which can occur with high current flow or prolonged use.

Would you like more technical details, or are you looking for recommendations for specific cable types?

· Wall charger
· Car charger
· Power bank
· Laptop

· Audio device / Speaker / earphone / head phone / headset

We offer customizable label options that can increase your brand's visibility on our USB C cables. Whether you need a specific design or packaging type, our is ready to assist you.

Flexi Electronics is committed to providing an excellent customer experience, which is why we offer free samples of our USB C cables. This allows you evaluate our product quality before making a commitment, ensuring you are satisfied with your choice.
Choose Flexi for a reliable, high-quality USB C to USB C cable3.1 Gen 2 solution tailored to your business needs!
